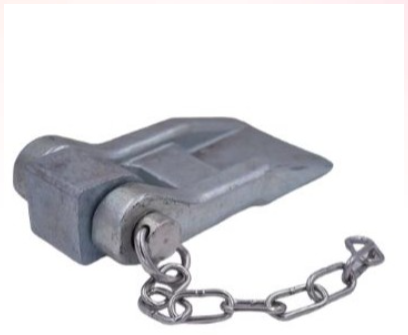

The open-top container hinge, also known as the open-top container door lintel assembly, is a switch and closing device that connects the door lintels of 20-foot and 40-foot soft open-top containers. Generally, there are two in a container, respectively distributed at the left and right ends of the door lintel. The hinge assembly includes the door lintel. The hinge seat and hinge plate, the latch with chain, can realize the maximum opening width of the revolving door lintel.

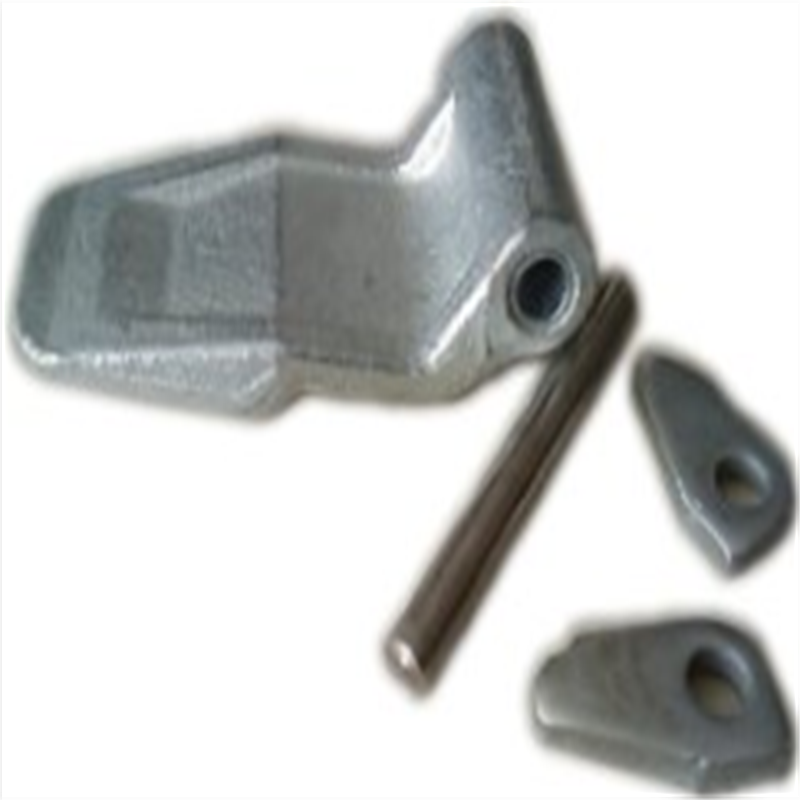

The hinge of the open top box includes a lintel hinge seat, a hinge plate, and a latch, which is installed on the door lintel beam. The hinge seat is connected to the hinge, and a fixed pin is fixed on the contact end surface, and is provided with a connecting hole that matches the fixed pin. The fixing pin is detachably inserted into the connection hole, and the end of the fixing pin passes through the connection hole. The end of the fixing pin is provided with a thread, and a fixing ring is set on the thread.
Door lintel hinge and an open-top container with the door lintel hinge. The door lintel includes a revolving door lintel in the middle and fixed door lintels on both sides. The revolving door lintel and the fixed door lintel are connected through the door lintel hinge. Each door lintel hinge includes: a hinge seat, a pin, and a hinge. The hinge seat is arranged directly below the corner piece of the open-top container and is fixedly connected to the side of the fixed door lintel. The hinge plate is provided with a hinge hole at each end, and a vertical hinge hole is formed inside the hinge seat.
