Dry Container Corner Fitting ABS Certificate ISO 1161
Home » Product Category » Container Spare Parts » Container Other Parts » Dry Container Corner Fitting ABS Certificate ISO 1161

Dry Container Corner Fitting ABS Certificate ISO 1161

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Product Description

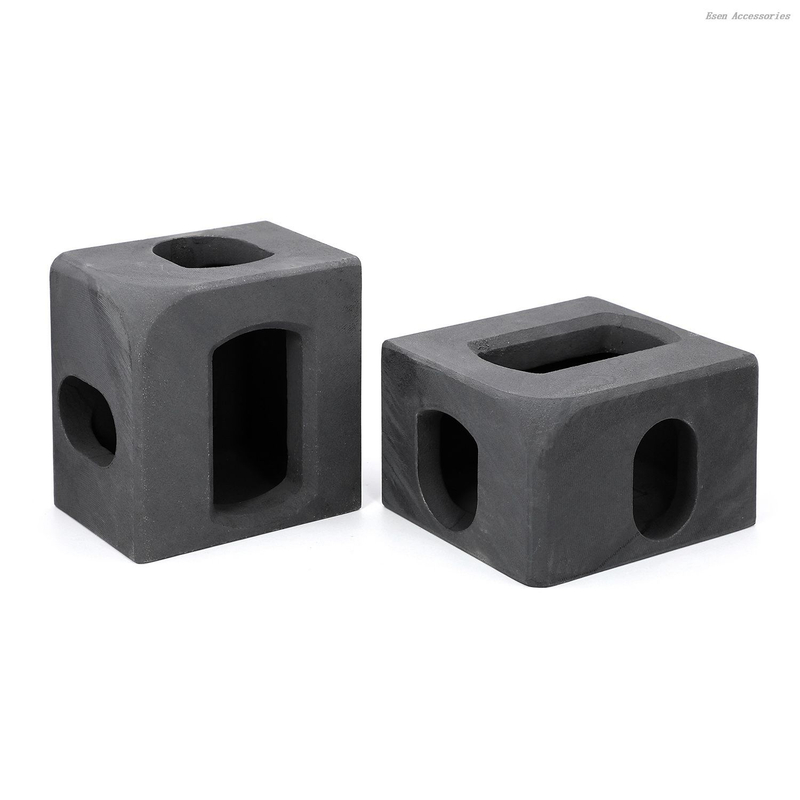

- The ISO container corner casting is made of casting steel with low temperature working at -40 °C as
  standard and the quality is completely in accordance with requirement of international standard.

- It is used to standard shipping cargo container, one set contains 8 pieces
  (including 2 Top Left, 2 Top Right, 2 Bottom Left, 2 Bottom Right)

Product Name ISO Container Corner casting
Place of Origin Shanghai, China
Material JIC SCW480
Size 178x162x118mm
Weight 11.00/pcs, 88kgs/set
Type TL, TR, BL, BR (8 pcs per set)
Certificate BV/ABS
Executive standard ISO1161-2016
Technology Coated sand casting
Package 100 pcs/pallet
Stock Quantity ≥500 sets
Time of Delivery Delivered in 3 days after receive your 30% in advance.

1111
High Quality Dry Shipping Container Accessories Casted BV/ABS Certificate ISO 1161 Container Corner Fitting Casting Spare Parts

Container locks

Application

Corner castings are the corners of an ISO shipping container. It used for shipping container to be connected
to other containers both horizontally and vertically.

Container-CornerHigh Quality Dry Shipping Container Accessories Casted BV/ABS Certificate ISO 1161 Container Corner Fitting Casting Spare Parts

Workshop

We have Professional Production Team, cleaning and orderly workshop will produce more qualified products,
all index abides by ISO1161-2016 Standard.

ISO1161-Shipping-Container-Corner-Blocks-Container-Scw480-Corner-Castings-Fittings-Spare-Parts2


Packaging & Shipping

Packed in standard exported pallets. 100 pieces of corner castings into one pallet.
QQ截图20221010162820



Exhibition

Every year we attend Intermodal Asia in Shanghai of China, Canton Fair in Guangzhou of China, Woodshow

in Dubai, IBS in US and also other international exhibitions.


QQ截图20230815161646

Our Advantages

We are manufacturer of container flooring plywood, container spare parts. We have possess a high-quality

management team.
Produce Steel Panel,Hinge,Twist Lock etc. Our product is continuously growing to diversity your needs.
Based on our advanced equipment and production line. All index abides by International Quality Standard.
★ We have provided our good products to hundreds of customers from 50 countries or more.
Our container parts are well praised by domestic and foreign customers.

We are welling to become a long-term partner with your company in the development.


High Quality Dry Shipping Container Accessories Casted BV/ABS Certificate ISO 1161 Container Corner Fitting Casting Spare Parts
