Hinge Blades Shipping Container Door Handle Hardware
Home » Product Category » Container Spare Parts » Door Locking Parts » Hinge Blades Shipping Container Door Handle Hardware

Hinge Blades Shipping Container Door Handle Hardware

Hinge blades are divided into froging type, welding type, Maersk Type. According to the material of the lining sleeve, it can be divided into nylon and copper.

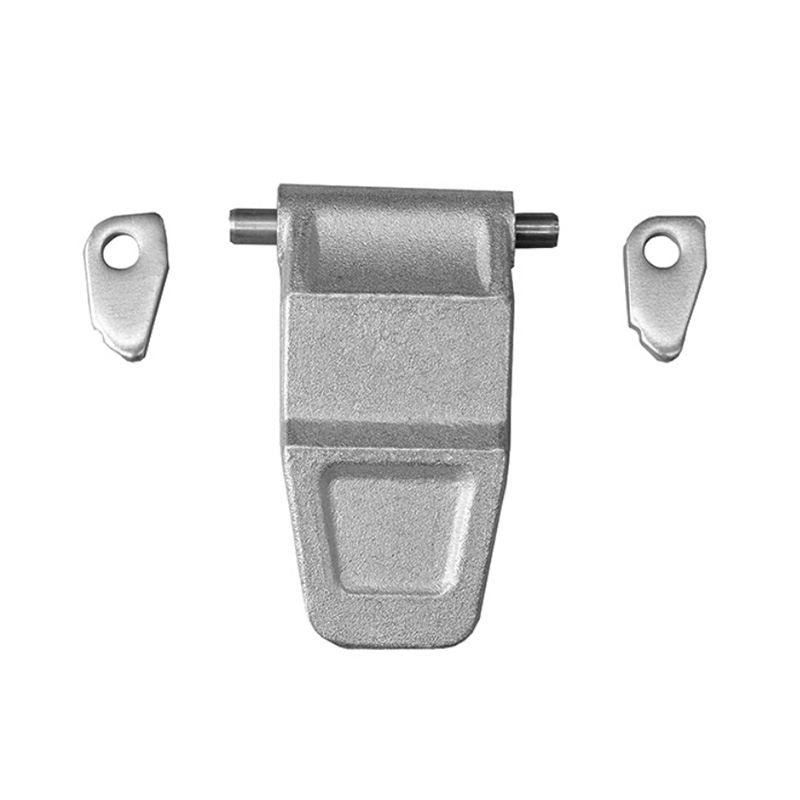

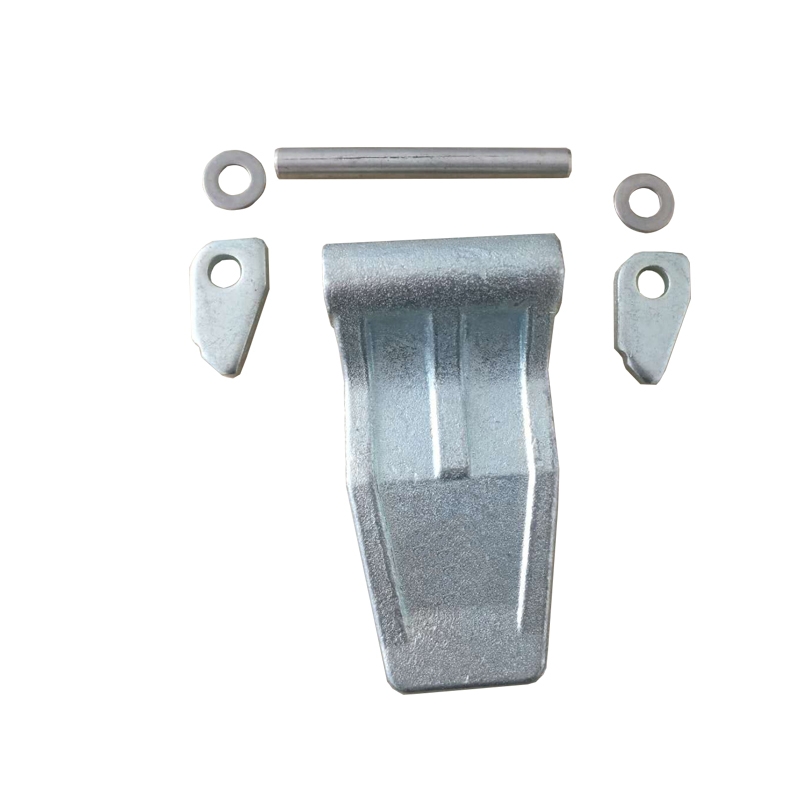

One container needs 8 pieces of hinge blade. Hinge blade set includes 1 piece hinge, 2 pieces lug, 1 piece hinge pin, 2 pieces brass wash.
MOQ:
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

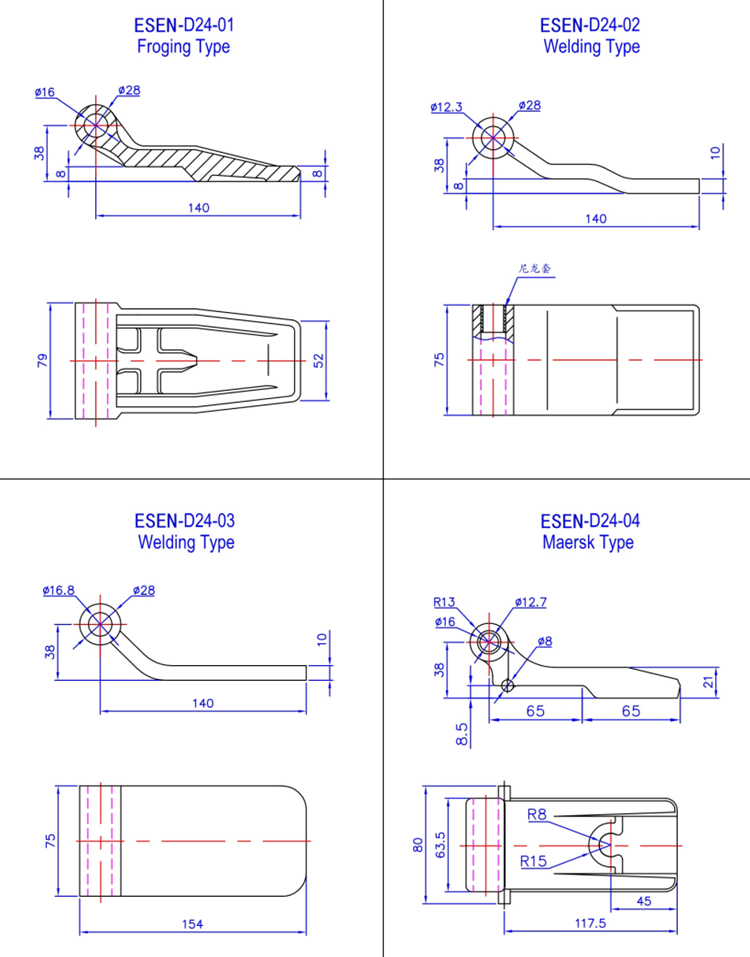

Product Name

Model

Weight

Hinge Blade Froging Type

ESEN-D24-01

1.45kg

Hinge Blade Welding Type

ESEN-D24-02

1.01kg

Hinge Blade Welding Type

ESEN-D24-03

0.99kg

Hinge Blade Maersk Type

ESEN-D24-04

1kg



Material:SS400/Q235B

Surface treatment:Hot Dip Galvanised/Cold Galvanizing

Size:Standard 20ft, 40ft Container

Instruction:It used for container steel rod, hot dip galvanized treatment, strong corrosion resistance, long service life

Use:Shipping Container, Container House, Container Repair, Container Manufactur

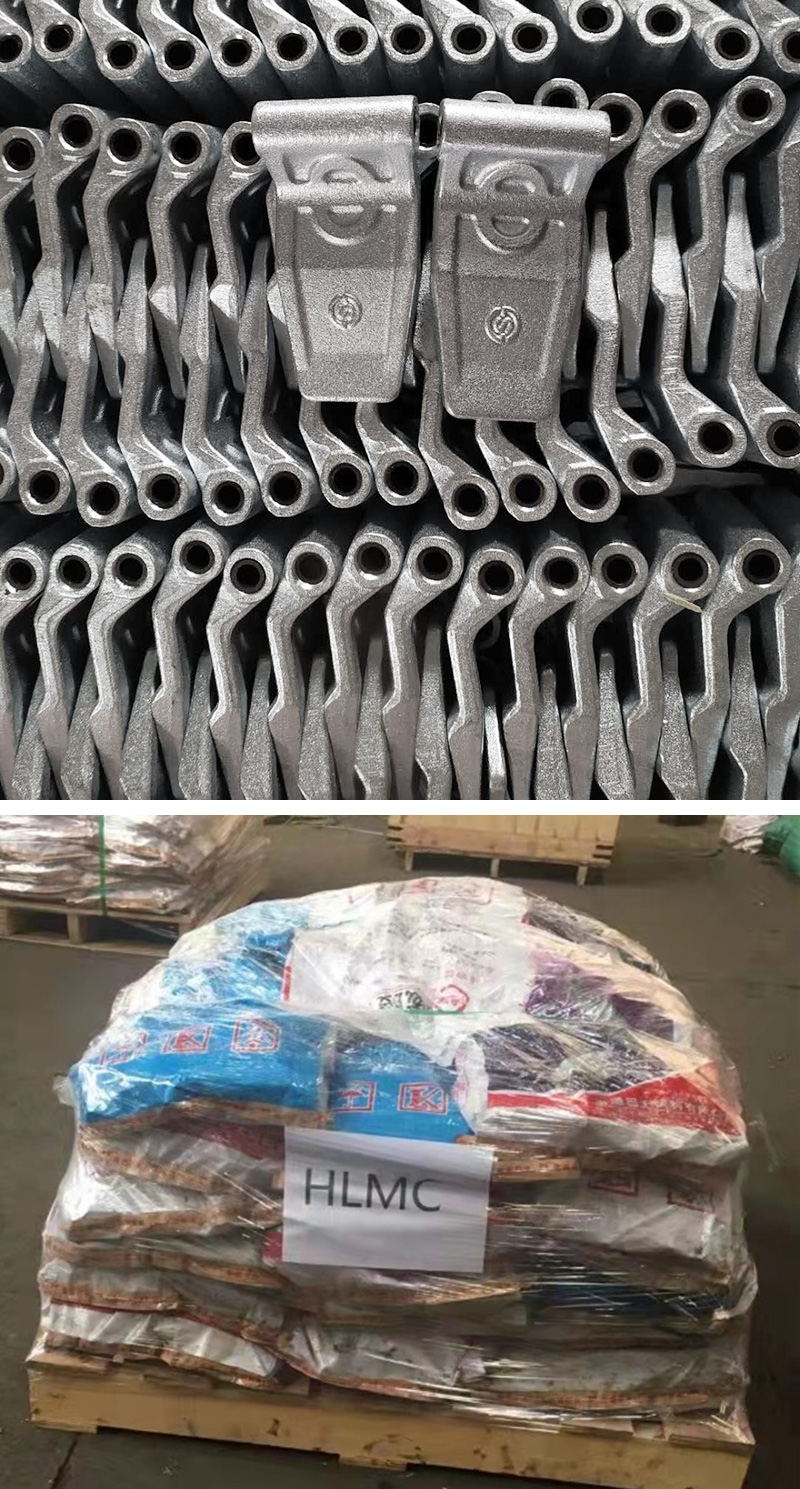

Package: We pack goods in wooden boxes or woven bags. Each package will be indicated the quantity. Our packing is strong, not susceptible to moisture and rust.
