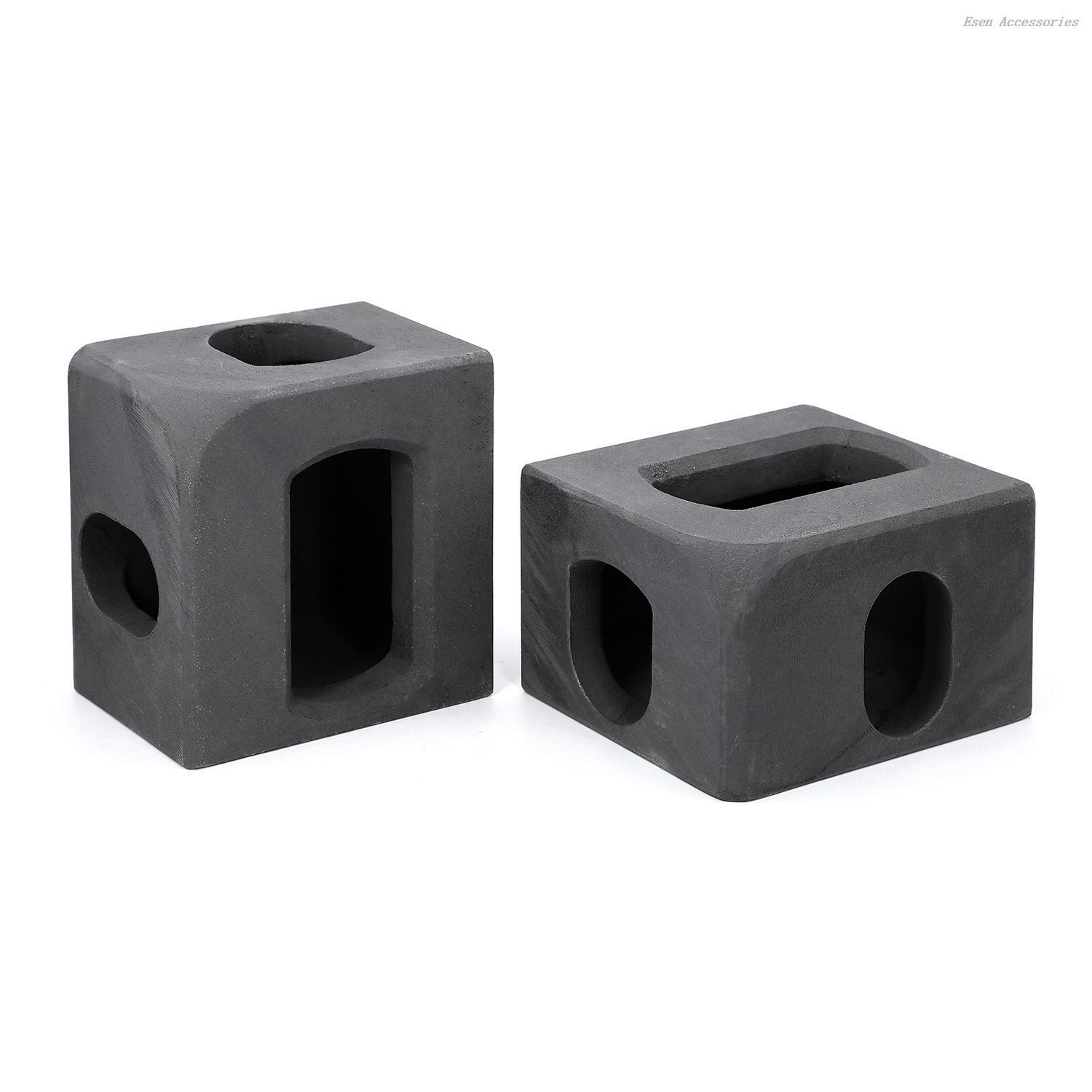

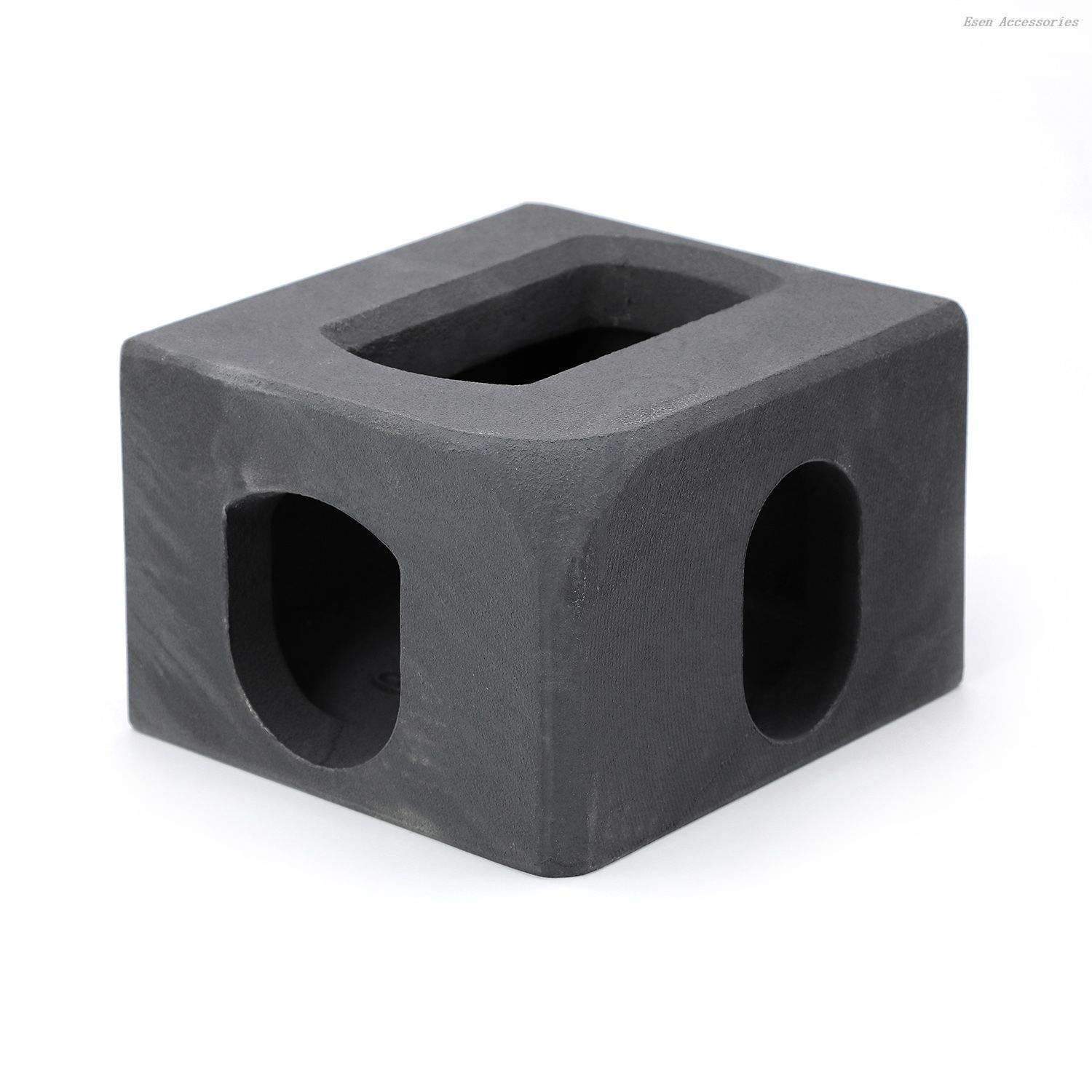

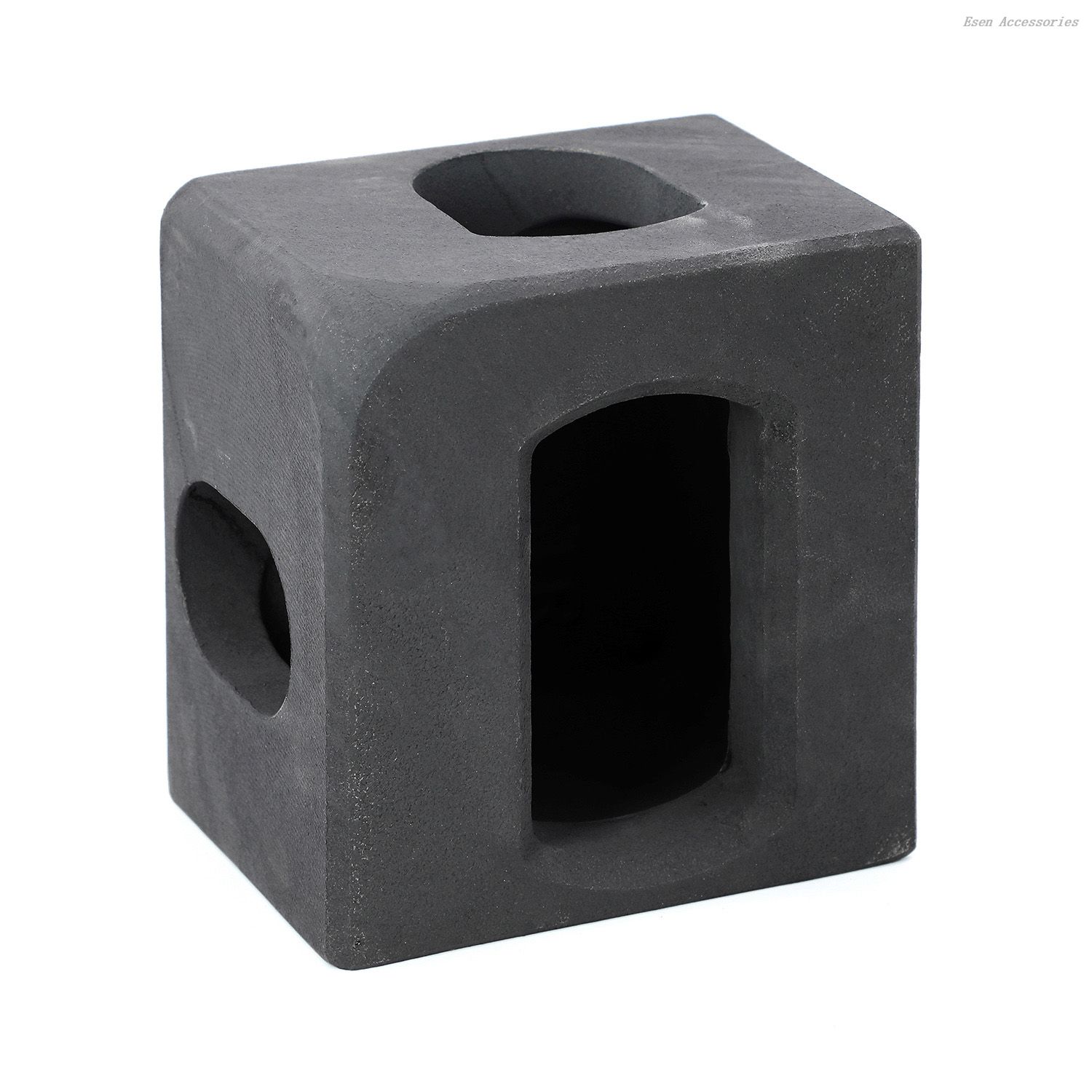

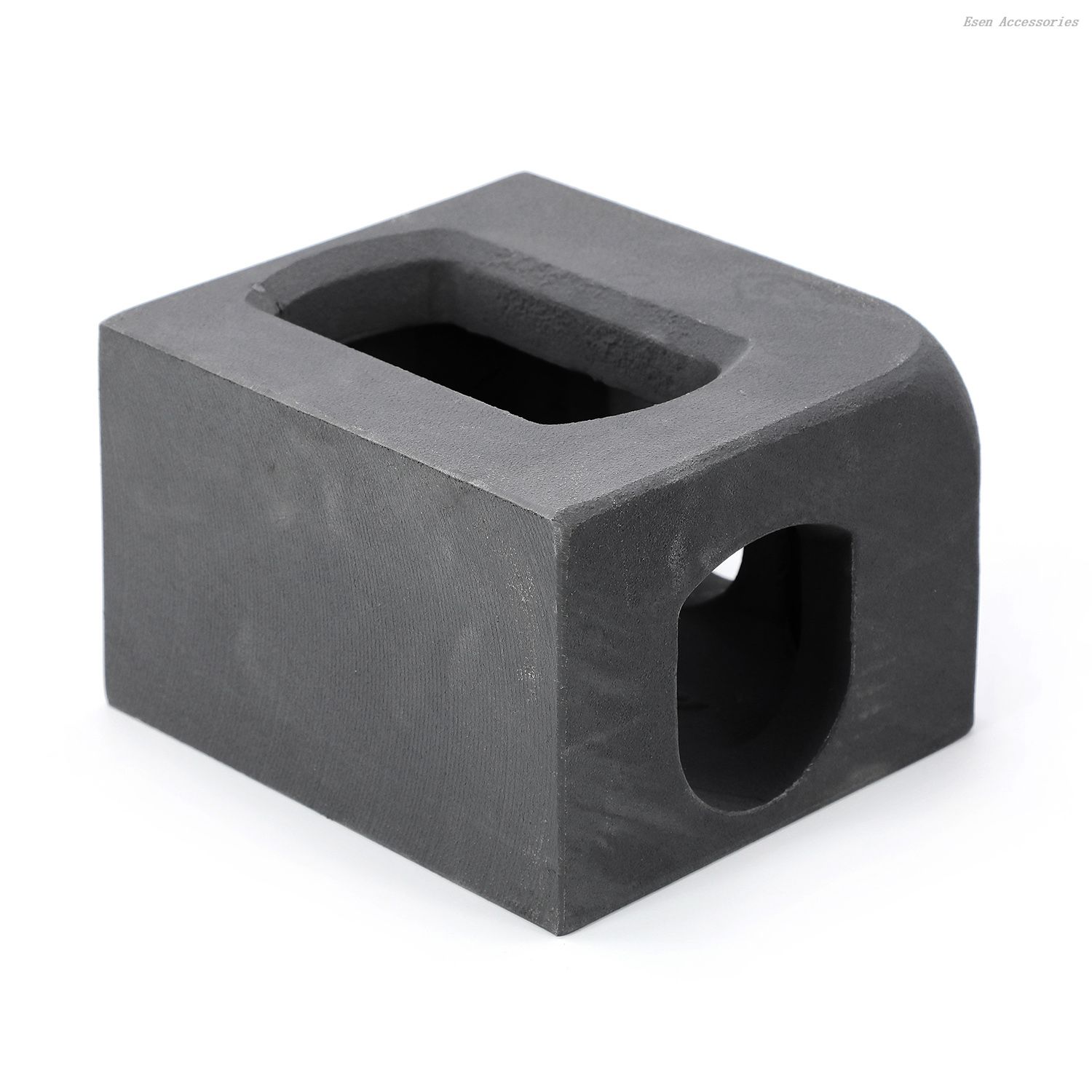

Twist Lock ABS BV Certified Container Parts & Accessories ISO 1161 Standard Casting Steel Shipping Container Corner Casting
Container Corner Castings are the key element to the structural maneuverability of shipping containers, they allow shipping containers to not only be able to be locked together both horizontally and vertically but they also allow shipping containers to be connected to other structures through the use of shipping container twist locks and shipping container bridge fitting.
| Product Name | Container Spare Parts corner castings fittings |

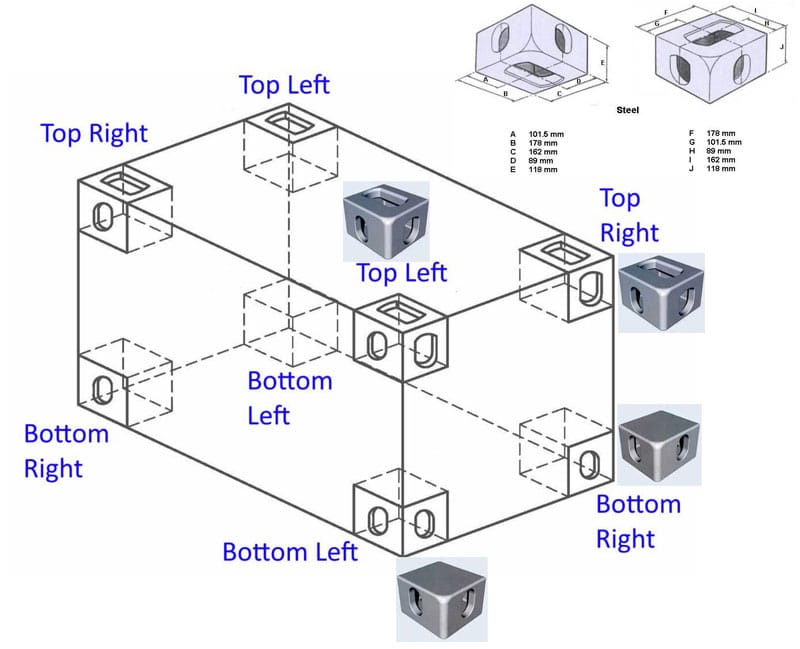

| Product Type | Corner casting for container (Top Right, Top Left,Bottom Left, Bottom Right). |
| Material | Casting steel, JIS SCW480 |
| Brand Name | ESEN |
| Size | 178×162×118mm |
| Weight | +/-11.0 kg/sheet. 8pcs in one set, including 2TL, 2TR, 2BL, 2BR |
| Standard | AISI, ASTM, BS, DIN, JIS. |
| Surface treatment | Painting |
| Technology | Corner casting made from special steel designed for low temperature working at -40°C as standard. |
| Application | Widely used in container manufacturing |
| Special Use | High-strength Steel Plate |
| Minimum Order Quantity | 100 Sets |
| Packaging details | 100 pcs of container corner fittings in one pallet (12.5 sets); 20 pallets in one 20GP container |
| Port | Shanghai, China |
| Delivery Time | 15 days or more quickly |
| Deposit value | 30% |
| Payment Terms | L/C - T/T |
| Supply Ability | 10000 Set/Sets Per Month |

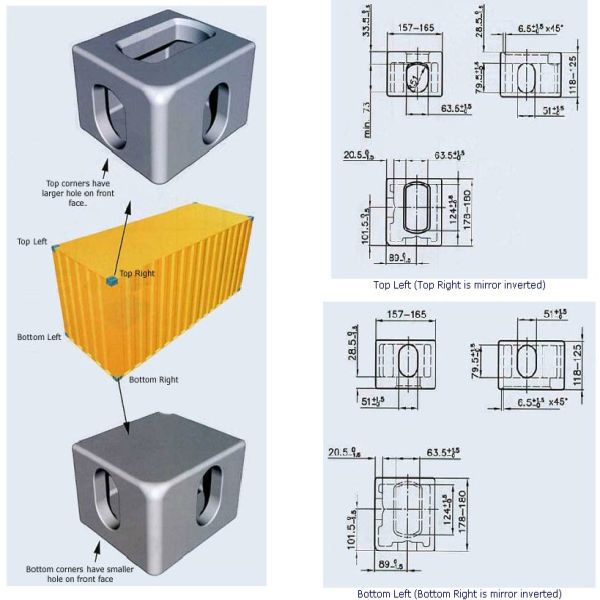

Technical Requirements
1. Corner casting should be manufactured in accordance with the technical requirements of ISO-1161
2. Otherwise unspecified costing corner are R3.
3.The surfaces of corner casting ore permitted to have defects such as sandhales cinderholes, and gashales which should
conform to the following requirements:
a.The depth of defect should not be more than 1mm, and the single defect area should not be more than 5x5(mm) the numbers of the above defects should not be more than 3.
b.The total area of the defects should not be mare than 3% of the area where they are located.
4. Every two volts with hole should be perpendicular to each other, and the perpendicularity should be 1mm.
5. The chamfer 6.5x45°of the hole Ø124x63.5 and the exterior corner R3 are allowed to be filled smoothly
6. The casting should be stamped.
7. The casting should be heat treated.

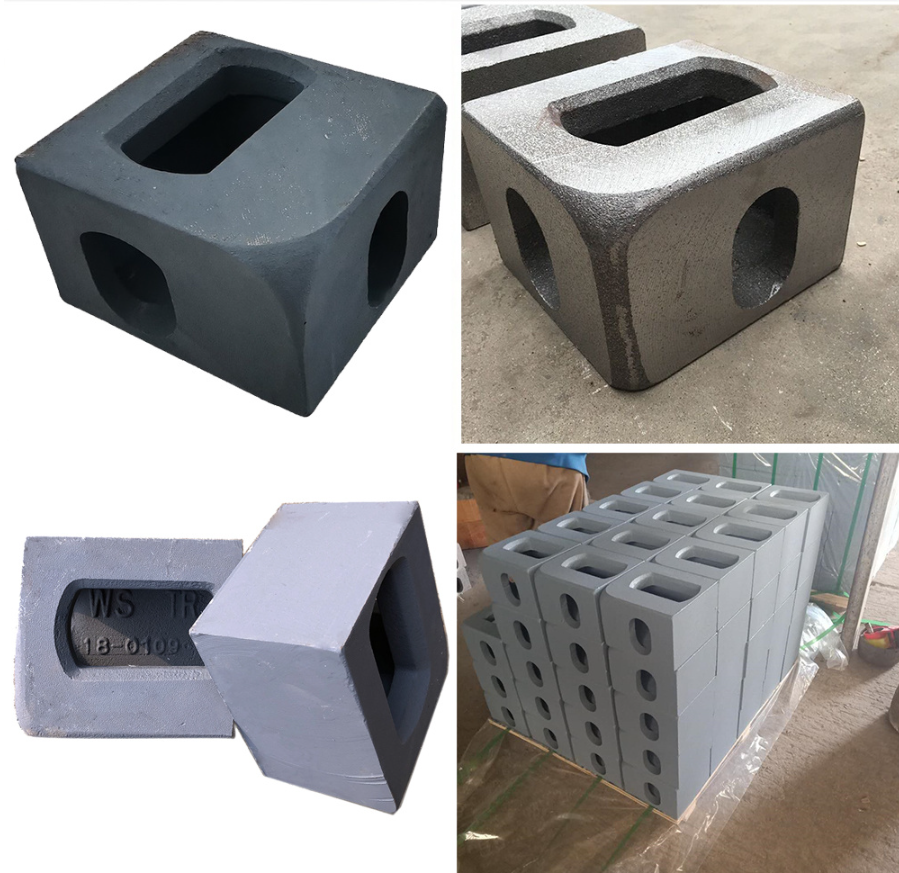

Packed in standard exported pallets. 100 pieces into one pallet.
We also can packing according to customer's requirements.
Our Company -------- Shouguang Esen Wood Co., Limited
SHOUGUANG ESEN WOOD CO.,LTD Locates in the largest wood production base---LINYICITY, and also one of the largest container spare parts production base---SHANGHAICIT Y, cover an area of 60, 000 square meters, with more than 500 employees, and have 9 AUTO production lines. The main products we are manufacturing are Container Flooring Plywood and Container Spare Parts. We* ve obtained ISO certificate, ABS Certificate of United States, and FSC Certificate, DEKRATest Report. Our annual production capacity is 100, 000 cubic meters container flooring plywood & 50,000 tons container spare parts, all index abides by International Quality Standard and China Quality Standard.
Twist Lock ABS BV Certified Container Parts & Accessories ISO 1161 Standard Casting Steel Shipping Container Corner Casting
Every year we attend Intermodal Asia in Shanghai of China, Canton Fair in Guangzhou of China, Woodshow
in Dubai, IBS in US and also other international exhibitions.ESEN FAMILY
Twist Lock ABS BV Certified Container Parts & Accessories ISO 1161 Standard Casting Steel Shipping Container Corner Casting
1. 28 years of professional experience, cover an area of 60, 000 square meters,
with more than 500 employees, and have 9 AUTO production lines.
2. Large quantity stock will meet your shipment, ship to you immediately.
3. Superior quality wins us the trust from clients, quality first is always our principle.
We control all processes strictly.
4. Creation and Innovation have already been meeting the increasing demands of customers.
5. Professional Team makes more communication easier to understand during the negotiation.
6. Delivery on time will be ensured.
1.Q: Are your container parts good quality?
A: Yes, all of our container are ABS, BV, CCS Certificate. If our parts are not good, how can we pass the ABS, BV, GL, CCS testing.
2.Q: What type container bottom side rail you can provide?
A: C type and Z type
3.Q: Can we order mixed parts?
A: Sure, you could choose spare parts that you need.
4.Q: Any surface treatment for your parts?
A: Yes, with zinc rich primer coating or Galvanized.
" Our Honesty " makes you save more cost on your business.
" Our High Reputation" makes you get your goods in time.
" Our Innovation " makes your business more competitive in your market.
Look forward to your join us & let us give you warm service and help you expand your business.
Warmly welcome to visiting our factory. Inquiry us in the bottom of this page !!!
