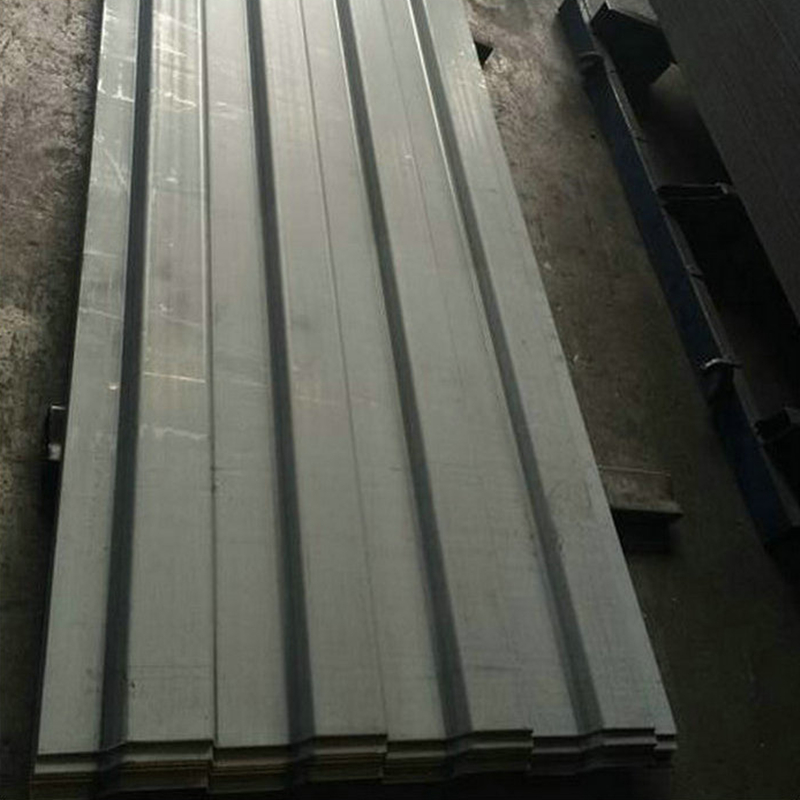

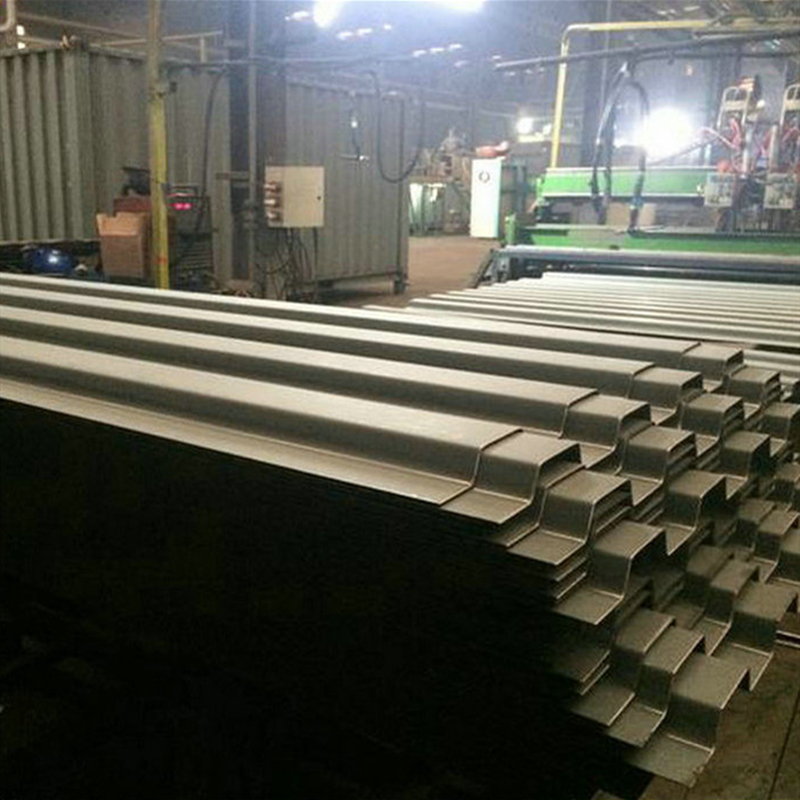

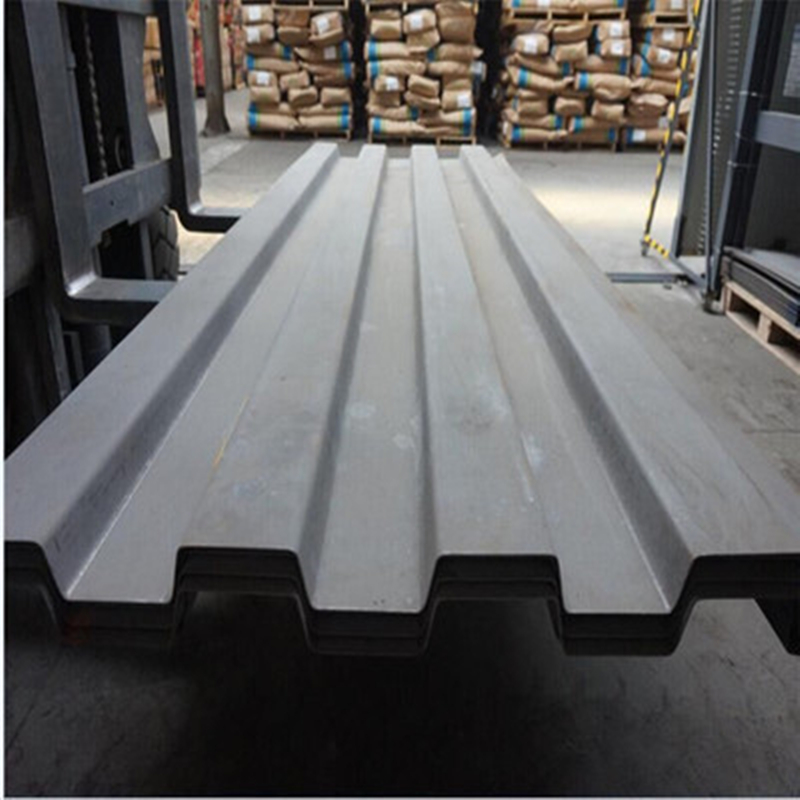

Front End Panel

he front end panel is mainly used for the front of containers. The standard thickness is 2.0, wave base width is 110, wave top width is 104, wave slope width is 18, the arc at the bend is R13.5, and the use size is 2.0*1045 (width) *2400 (height). A total of 2 pieces are used, and the heights are welded together during welding.

Quantity:
MOQ:	200
Availability:





Inquire Add to Basket PDF Export

Product Description

Model	Specification	Name	SIZE(MM)	WEIGHT(KG)

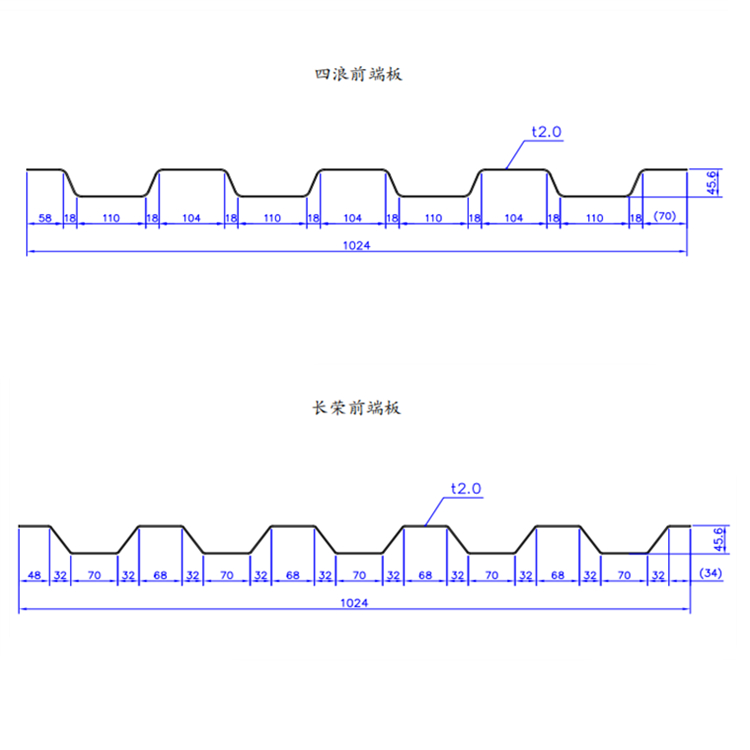

ESEN-D03-01A	四浪前端板	4 Corr Front End Panel	2.0X1024X2400	46.158
ESEN-D03-01B	四浪前端板	4 Corr Front End Panel	2.0X1024X2700	51.928
ESEN-D03-02A	长荣前端板	Front End Panel	2.0X1024X2400	46.158
ESEN-D03-02B	长荣前端板	Front End Panel	2.0X1024X2700	51.928

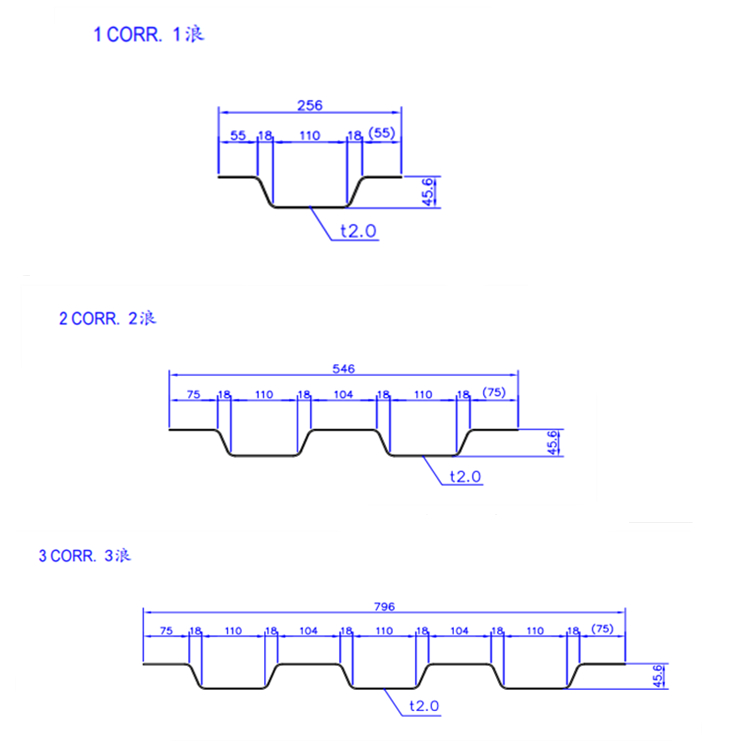

ESEN-D03-03-1	1 浪前端板	1 Corr Front End Patch	2.0X256X2700	10.921
ESEN-D03-04	2 浪前端板	2 Corr Front End Patch	2.0X546X2700	23.292
ESEN-D03-05	3 浪前端板	3 Corr Front End Patch	2.0X796X2700	33.957

Feature description：The front end panel is mainly used for the front of containers. The standard thickness is 2.0, wave base width is 110, wave top width is 104, wave slope width is 18, the arc at the bend is R13.5, and the use size is 2.0*1045 (width) *2400 (height). A total of 2 pieces are used, and the heights are welded together during welding.

Material：Corten Steel

Surface treatment：Stand Blasting,Spray Paint

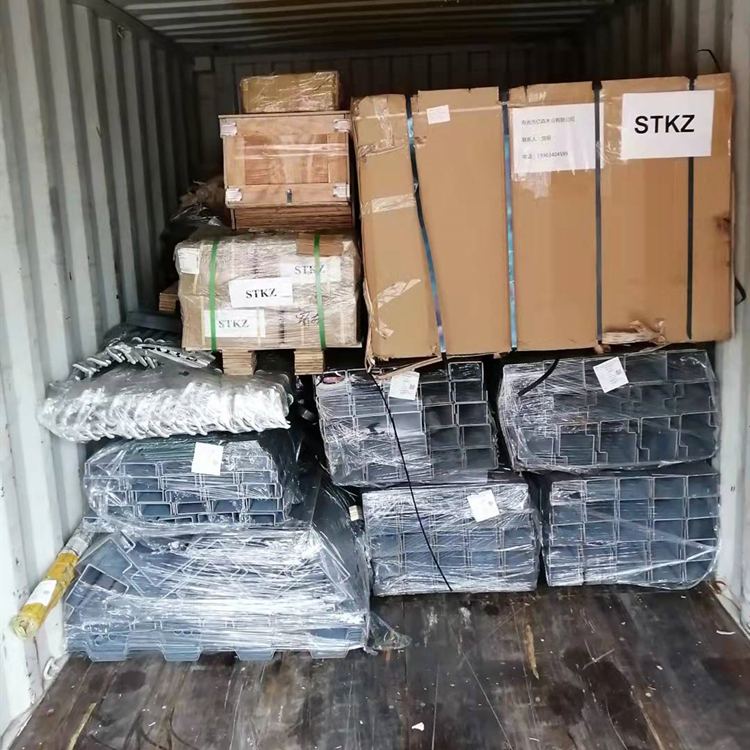

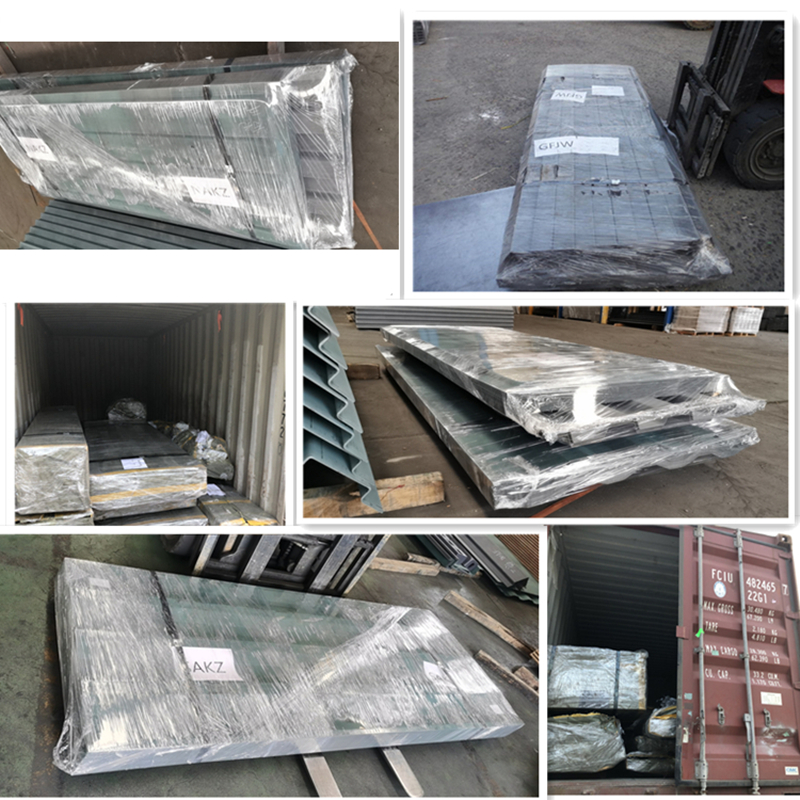

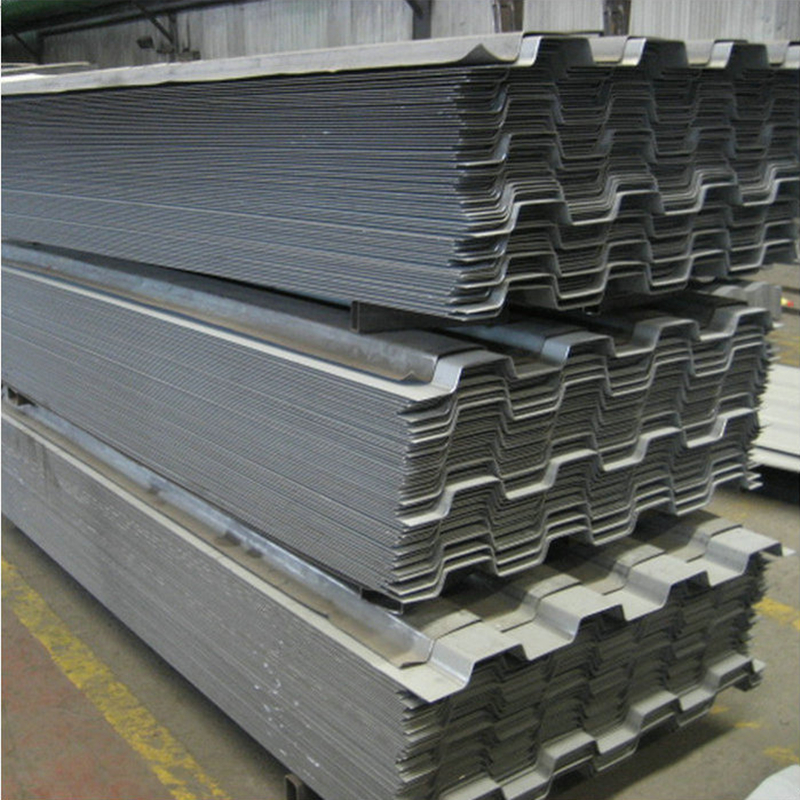

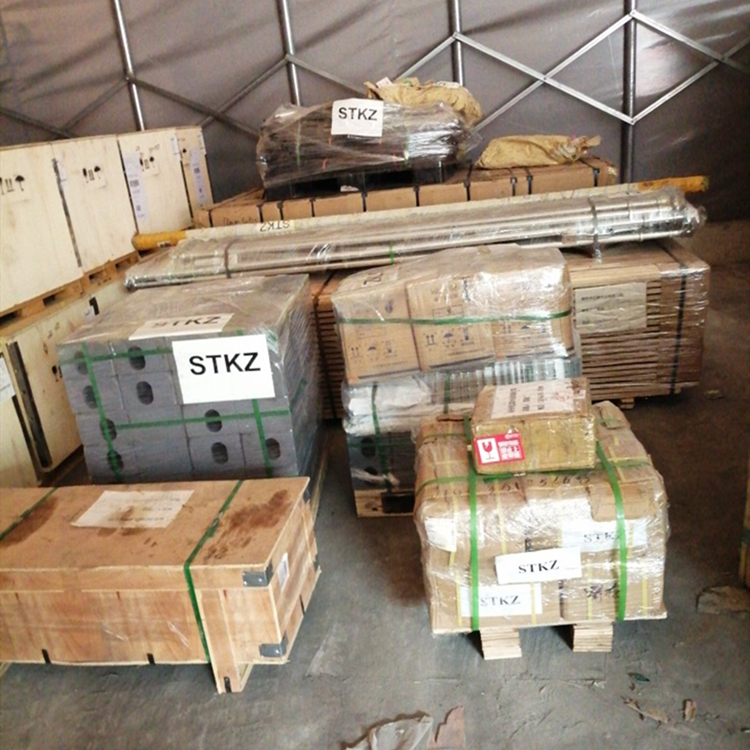

Package：The front end panel can be stacked and placed with small space, and wooden frame can be used for transportation.The packaging is not easy to get wet and rust.
