Container Corner Castings

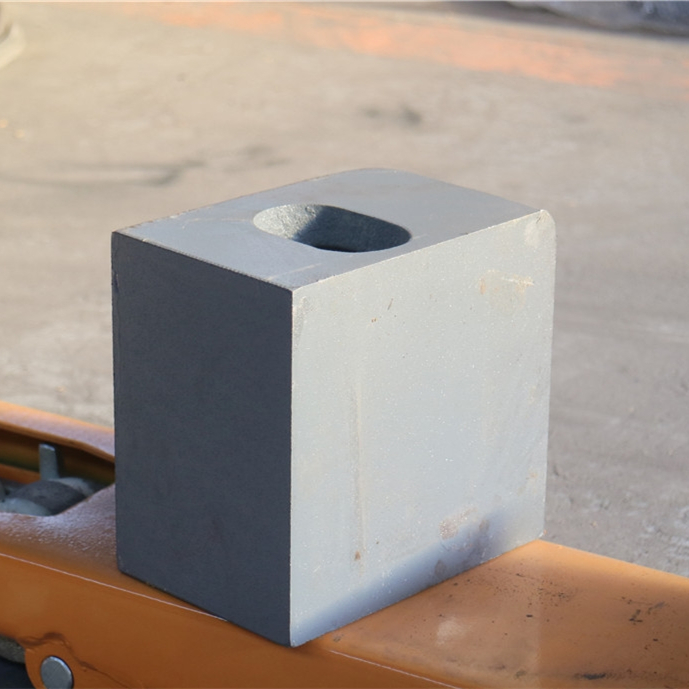

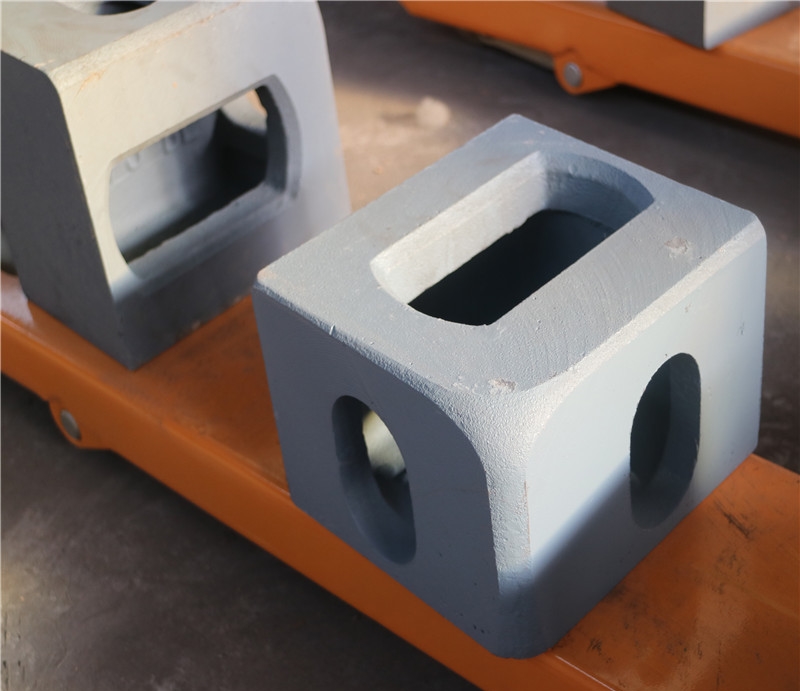

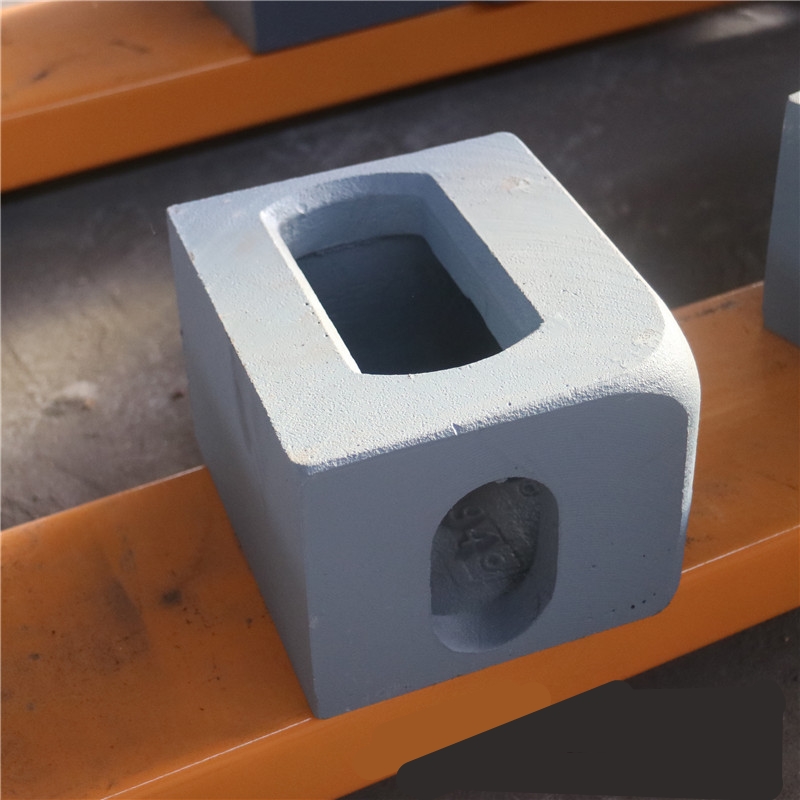

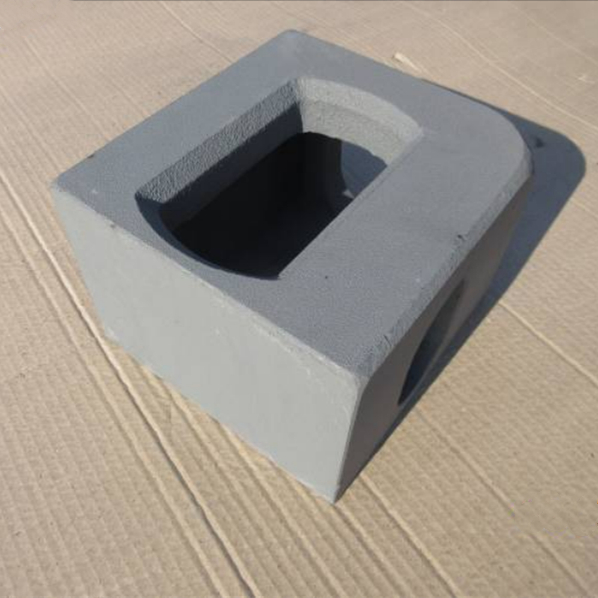

The ISO container corner casting is made of casting steel with low temperature working at -40 °C as standard and the quality is completely in accordance with requirement of international standard.

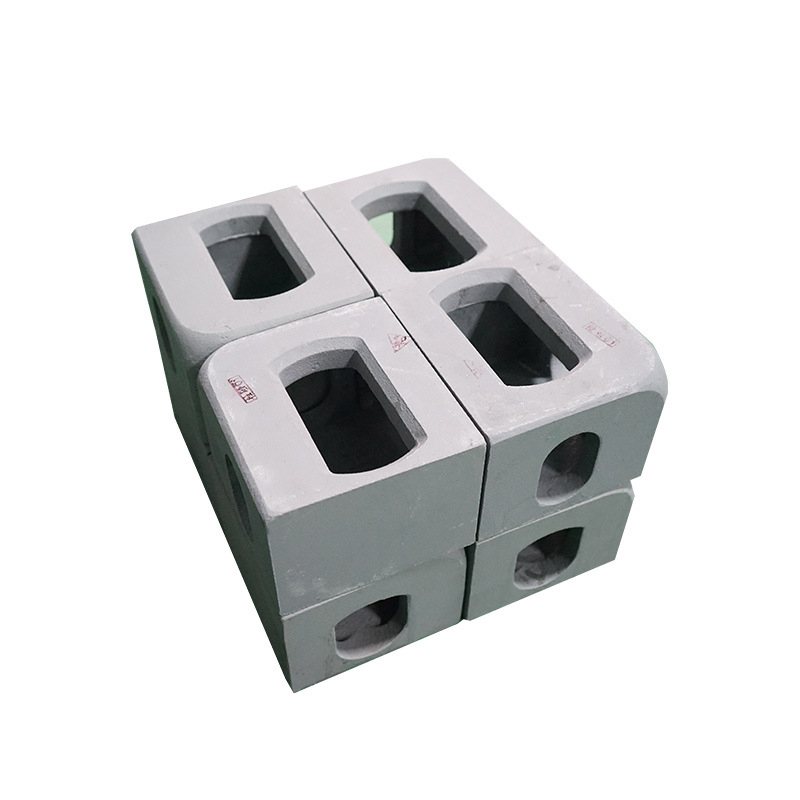

It is used to standard shipping cargo container, one set contains 8 pieces (including 2 Top Left, 2 Top Right, 2 Bottom Left, 2 Bottom Right)
MOQ:
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product name

Model

Weight

Container Corner Casting BL

ESEN-D19-01-1

11kg

Container Corner Casting BR

ESEN-D19-01-2

11kg

Container Corner Casting TL

ESEN-D19-01-3

11kg

Container Corner Casting TR

ESEN-D19-01-4

11kg

12


Feature description:

The ISO container corner casting is made of casting steel with low temperature working at -40 °C as standard and the quality is completely in accordance with requirement of international standard.

It is used to standard shipping cargo container, one set contains 8 pieces (including 2 Top Left, 2 Top Right, 2 Bottom Left, 2 Bottom Right)

Material:SCW480

Surface treatment:Coated sand casting

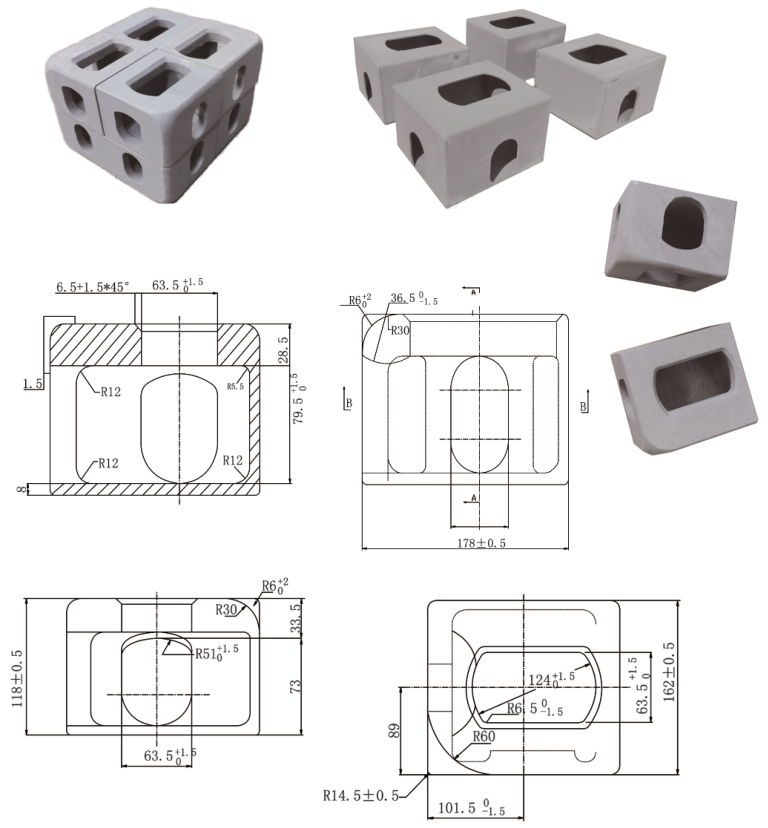

Size:178x162x118mm

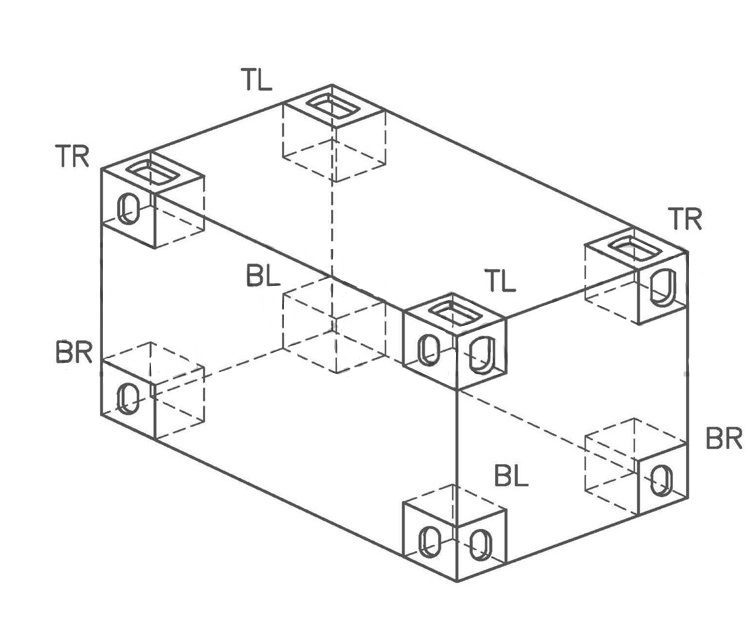

Instructions for use:Corner castings are the corners of an ISO shipping container. It used for shipping container to be connected to other containers both horizontally and vertically.

Use:Shipping Container, Container House, Container Repair, Container Manufactur

Package: We pack goods with pallets, one pallet can load 100 pieces. 1x20'GP can load 300 sets.
