Hardwood Floorboard Container Flooring Plywood
Home » Product Category » Container Spare Parts » Floorboard » Hardwood Floorboard Container Flooring Plywood

loading

Hardwood Floorboard Container Flooring Plywood

Core:
hardwood throughout
inclu.Keruing（Apitong）
Malas Ulmus Rubra etc
MOQ:
200
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

GRADE

model

name

SIZE(MM)

WEIGHT

(KG)

Working Load

in Test (kgs)


Grade H

ESEN-D32-01A-GH

Container Flooring Plywood

1160X2400X28


7260

ESEN-D32-01B-GH

Container Flooring Plywood

28X640X2400

ESEN-D32-01C-GH

Container Flooring Plywood

28X1220X2400


Grade A

ESEN-D32-01A-GA

Container Flooring Plywood

28X1160X2400


6000

ESEN-D32-01B-GA

Container Flooring Plywood

28X640X2400

ESEN-D32-01C-GA

Container Flooring Plywood

28X1220X2400


Grade B

ESEN-D32-01A-GB

Container Flooring Plywood

28X1160X2400


5000

ESEN-D32-01B-GB

Container Flooring Plywood

28X640X2400

ESEN-D32-01C-GB

Container Flooring Plywood

28X1220X2400


Grade C

ESEN-D32-01A-GC

Container Flooring Plywood

28X1160X2400


4500

ESEN-D32-01B-GC

Container Flooring Plywood

28X640X2400

ESEN-D32-01C-GC

Container Flooring Plywood

28X1220X2400


Feature description：Face/Back:Keruing(Apitong)


Core：hardwood throughout,inclu.Keruing（Apitong）,Malas Ulmus Rubra etc.

Plies：19 plies,21 plies,23 plies

Glue：WBP Phenolic

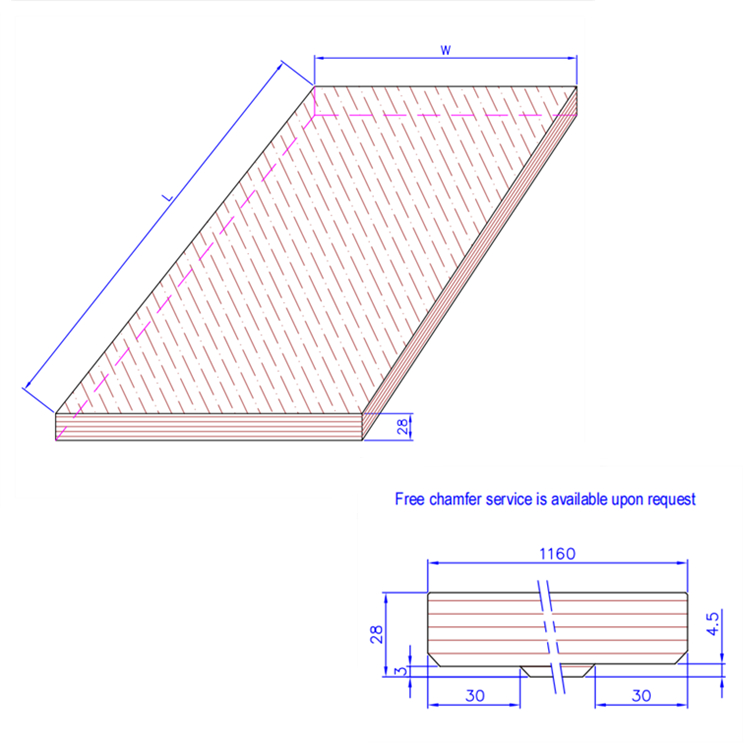

Edge treatment：45 degrees groove/cut(45 degree chamfer angle)with customer' s requirement.

Moisture content：10%-12%

Bonding strength：≥0.7Mpa

Density：Over 750kgs/cbm

Payload：5460kgs,7260kgs.


Surface treatment：Surface treatment:can be raw or lacquered

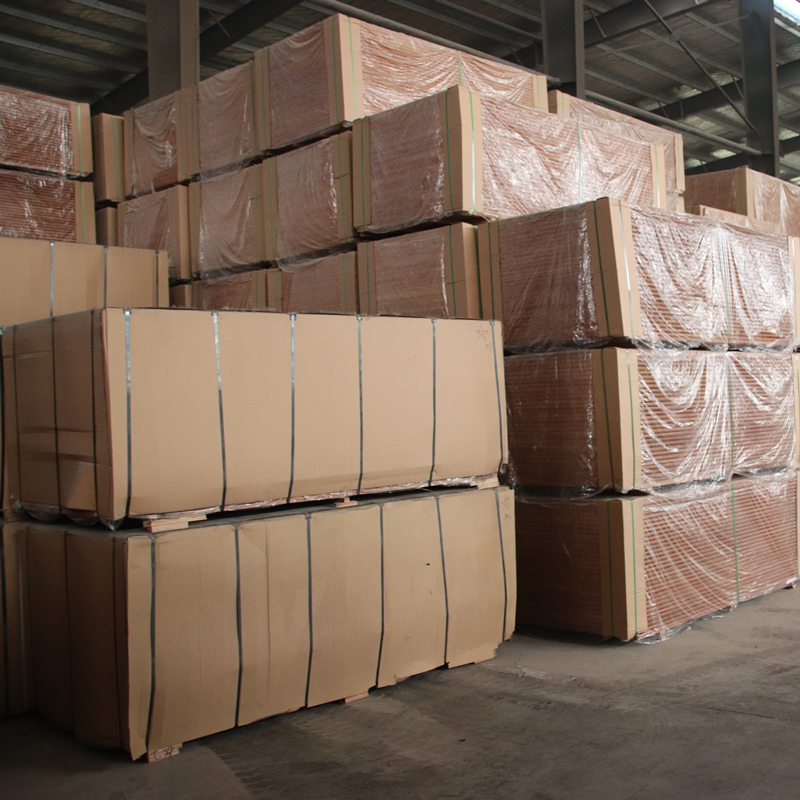

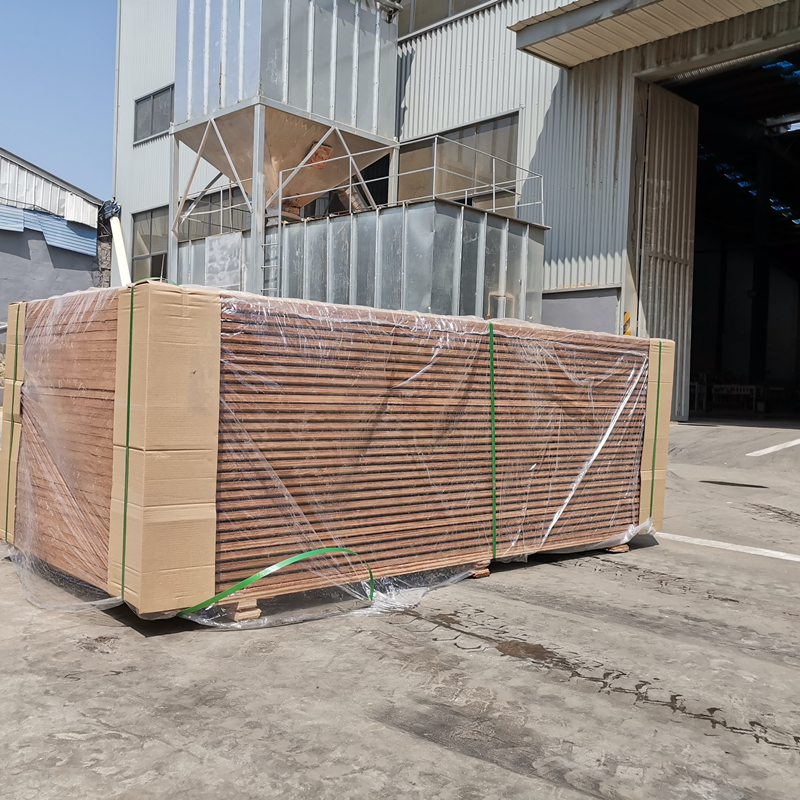

Package

1) Inner with waterproof plastic bag ,outside with plywood or carton ,then fastened with 4*8 sheet iron belt.

2) Good package will reduce your loss largely on the goods, and we are more professional on Exporting Packing.


12

Instructions for use：The characteristics of container flooring plywood are high strength and good load bearing. There are many kinds.


Use：Used to repair containers and manufacture containers.
