Self Tapping Metal Tapping Screws
Home » Product Category » Container Spare Parts » Container Pin » Self Tapping Metal Tapping Screws

Self Tapping Metal Tapping Screws

The tapping screw commonly used sizeis M8x45, fuction is to fix the container flooring plywood. The number of containers used is about 160 pieces.
MOQ:
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

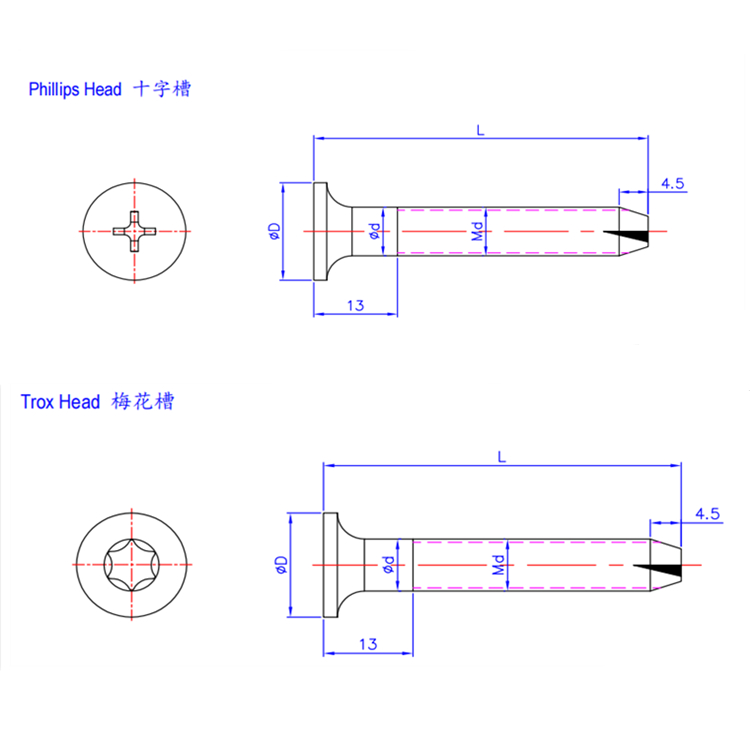

Model

SPEC

L

ØD

Ød

ESEN-D28-01A

M6X45

45

14.5

6

ESEN-D28-01B

M6X50

65

14.5

6

ESEN-D28-01C

M6X65

50

14.5

6

ESEN-D28-02A

M8X45

45

15.5

8

ESEN-D28-02A

M8X45

45

15.5

8

ESEN-D28-02B

M8X50

50

15.5

8

ESEN-M8X65

M8X65

65

15.5

8

ESEN-D28-02A-1

M8X45

45

15.5

8

ESEN-D28-02B-1

M8X50

50

15.5

8

ESEN-D28-02C-1

M8X65

65

15.5

8


Feature description:

The tapping screw commonly used sizeis M8x45, fuction is to fix the container flooring plywood. The number of containers used is about 160 pieces.

Material:Q235B

Specification:Standard 20ft, 40ft Container

Instructions for use:

It used for container steel rod, hot dip galvanized treatment, strong corrosion resistance, long service life

Use:Shipping Container, Container House, Container Repair, Container Manufactur

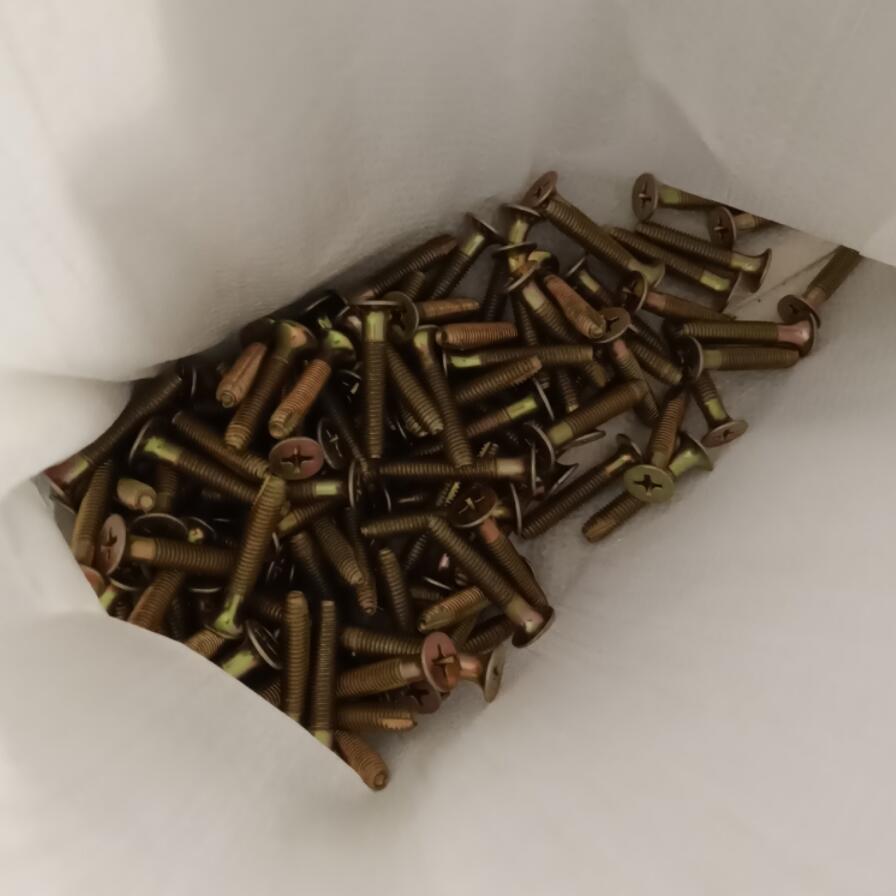

Package: We pack goods in woven bags. Each package will be indicated the quantity. Our packing is strong, not susceptible to moisture and rust.
