Model | Specification | Name | SIZE(MM) | WEIGHT(KG) |

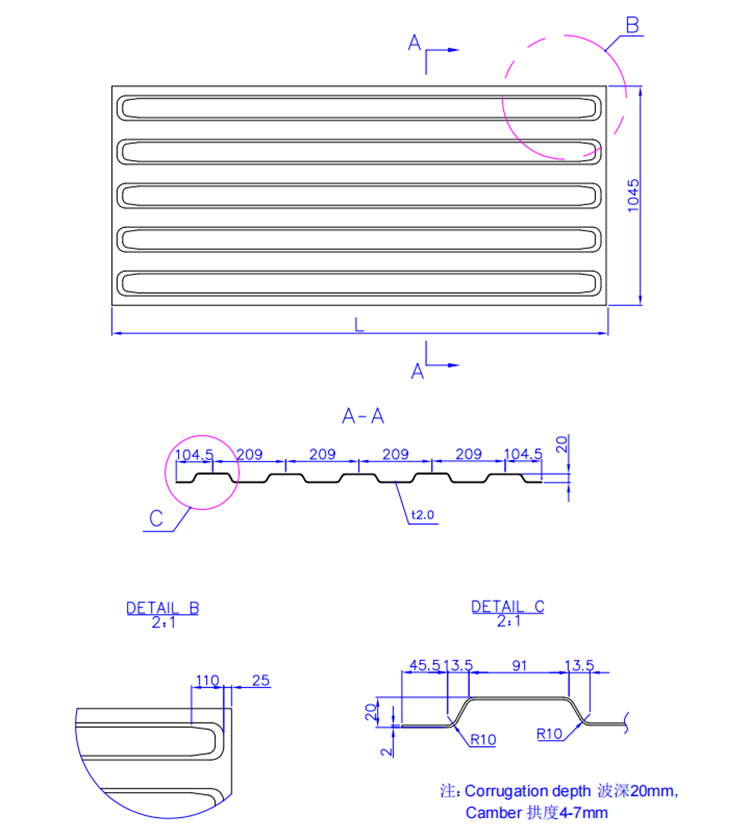

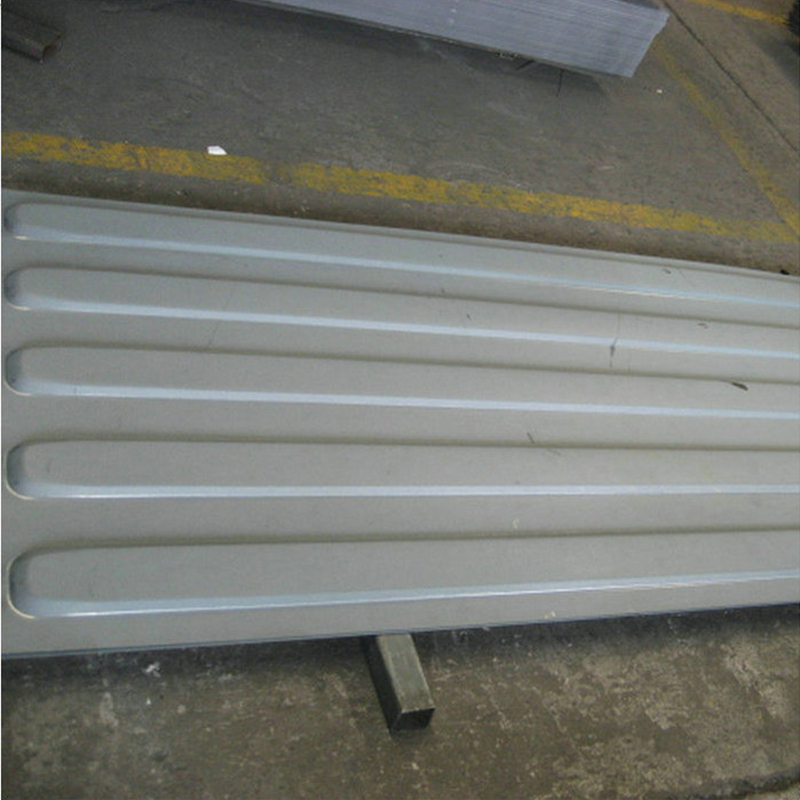

ESEN-D01-01 | 五浪圆头大顶板 | 5 Wave Round Roof Panel | 2.0*1045*2356 | 42.117 |
ESEN-D01-05 | 五浪圆头小顶板 | 5 Wave Round Roof Panel | 2.0*1045*600 | 11.443 |
ESEN-D01-05-2 | 五浪圆头中顶板 | 5 Wave Round Roof Panel | 2.0X1045X1200 | 22.088 |

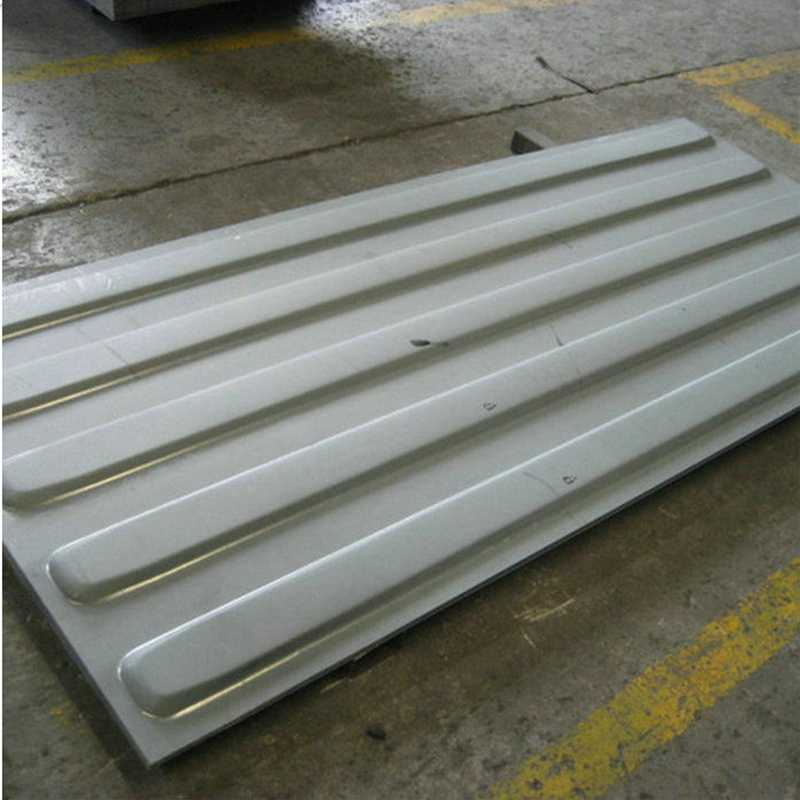

ESEN-D01-09 | 四浪圆头大顶板 | 4 Wave Round Roof Panel | 2.0X1045X2356 | 42.117 |
ESEN-D01-05-3 | 四浪圆头小顶板 | 4 Wave Round Roof Panel | 2.0X1045X600 | 11.443 |
ESEN-D01-05-4 | 四浪圆头中顶板 | 4 Wave Round Roof Panel | 2.0X1045X1200 | 22.088 |

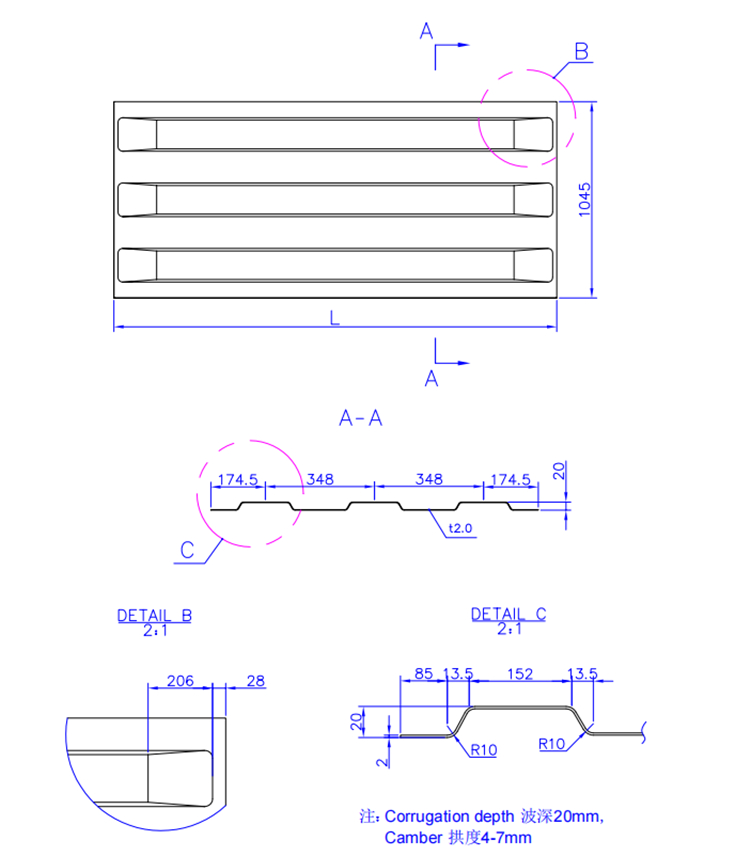

ESEN-D01-03 | 三浪方头大顶板 | 3 Corr Roof Panel | 2.0X1045X2356 | 41.476 |
ESEN-D01-07 | 三浪方头小顶板 | 3 Corr Roof Panell | 2.0X1045X600 | 11.240 |

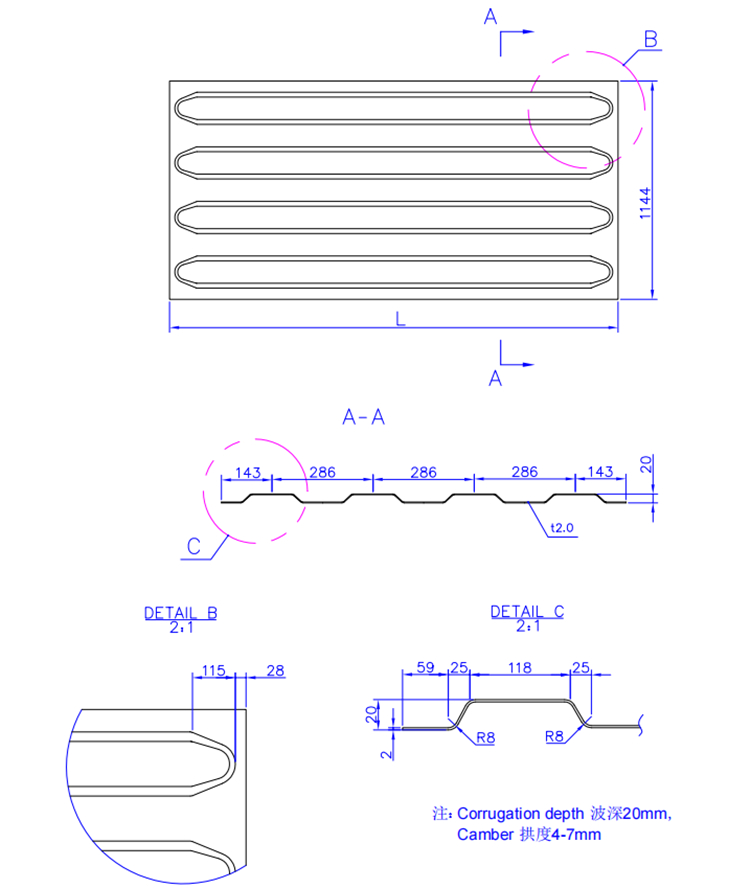

ESEN-D01-04 | 四浪尖头大顶板 | 4 Sharp Wave Roof Panel | 2.0X1144X2359 | 46.158 |
ESEN-D01-08 | 四浪尖头小顶板 | 4 Sharp Wave Roof Panel | 2.0X1144X600 | 12.501 |

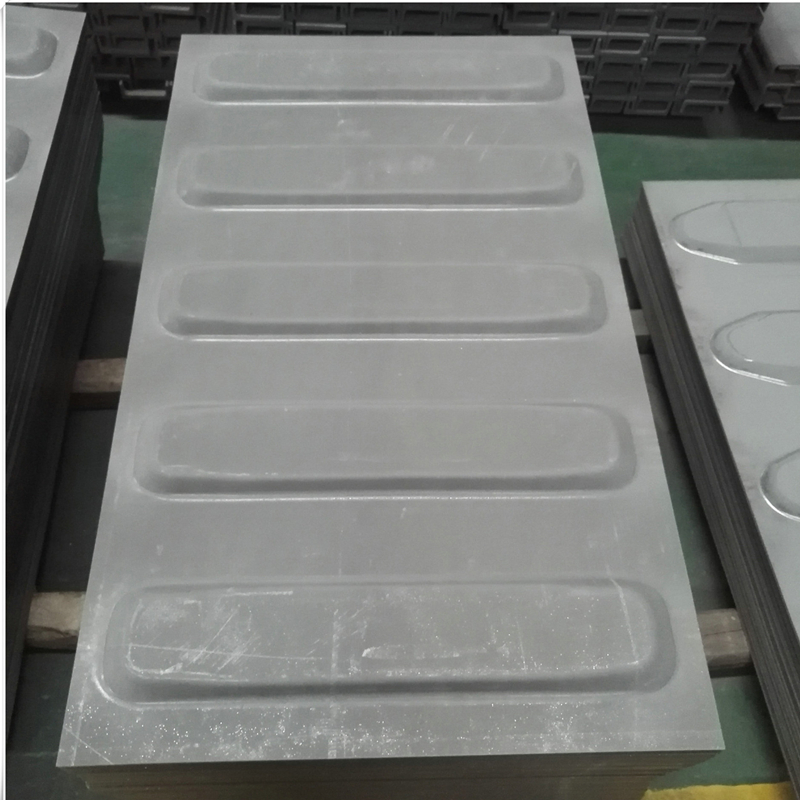

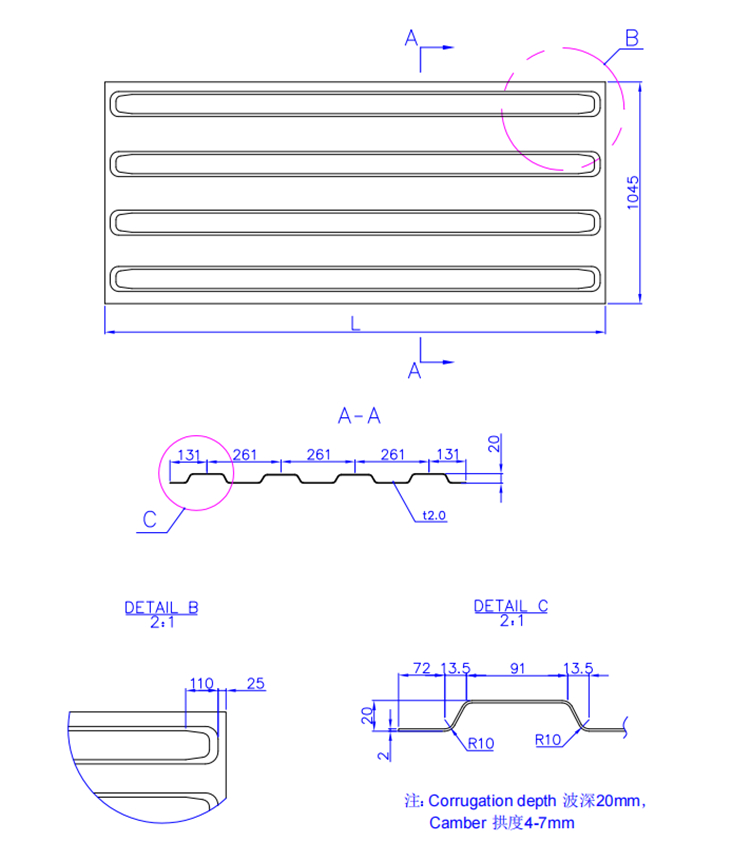

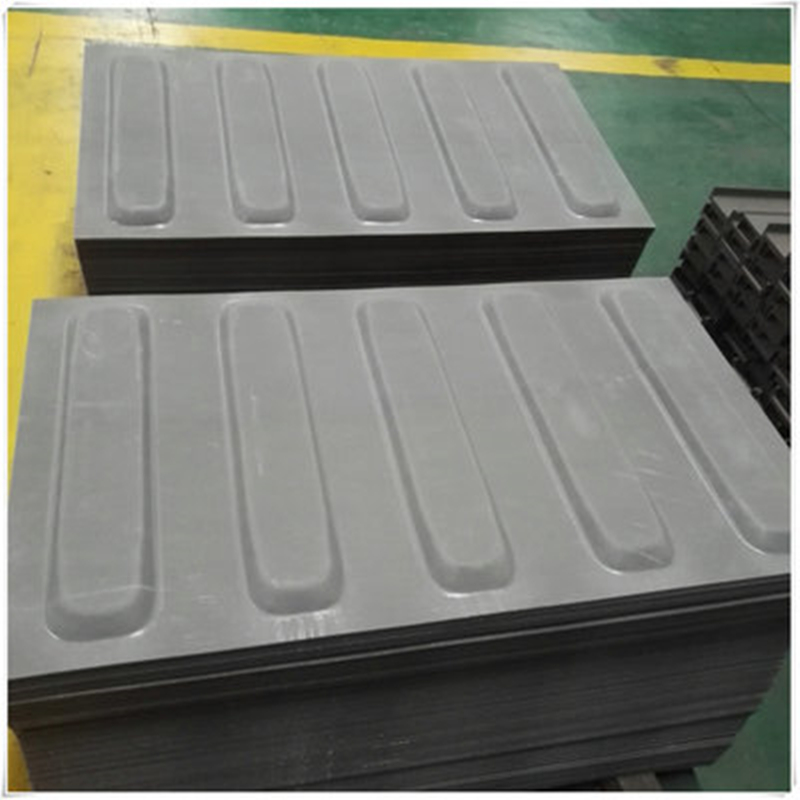

Feature description：Roof panel is used for the top of container, with a standard thickness of 2.0, wave height of 25, wave width of 91, slope width of 13.5, arc Angle at the bending point of R30, the interval between corrugated and corrugated is 91, each 20GP needs to use 5 PCS of whole panels. Dimensions: 2.0*1045 (width) *2356 (height). The welding process is wide and wide butt, and the five plates are welded in turn to form the roof panel of the container.
Material：Corten Steel
Surface treatment：Stand Blasting,Spray Paint

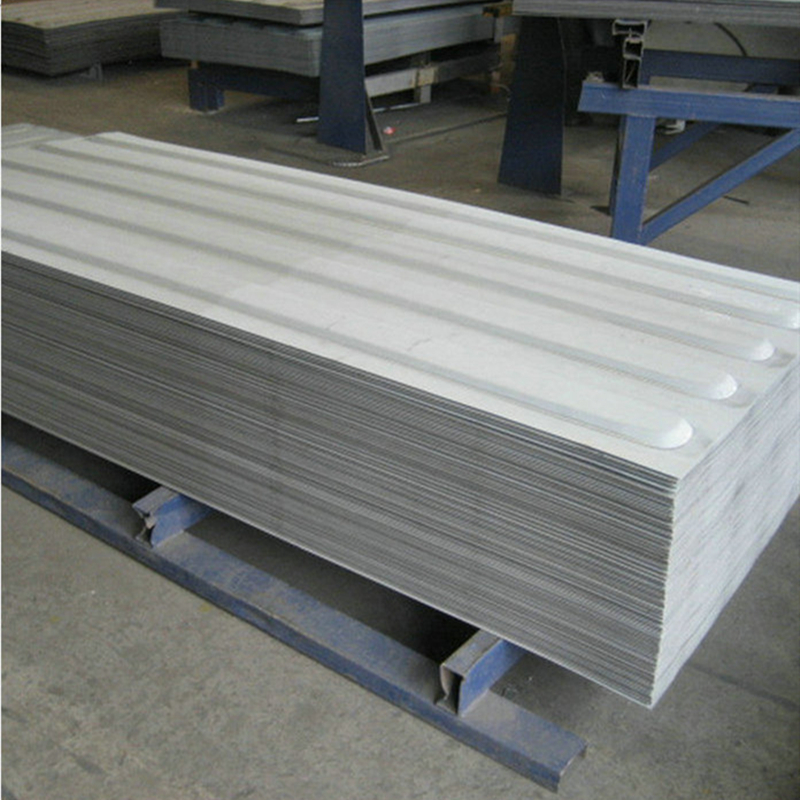

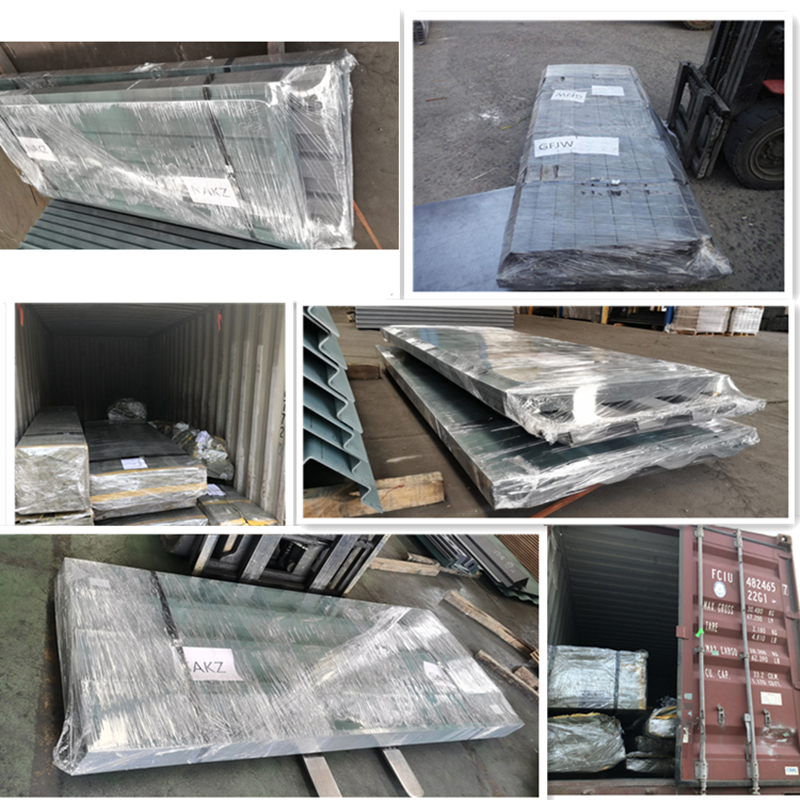

Package：The roof panel can be stacked and placed with small space, and wooden frame can be used for transportation.The packaging is not easy to get wet and rust.
Instructions for use：The roof panel is hot-dip galvanized, with strong corrosion resistance and long service life.
Use：The purpose of roof panel is for repairing or manufacturing shipping container top, house container top.
