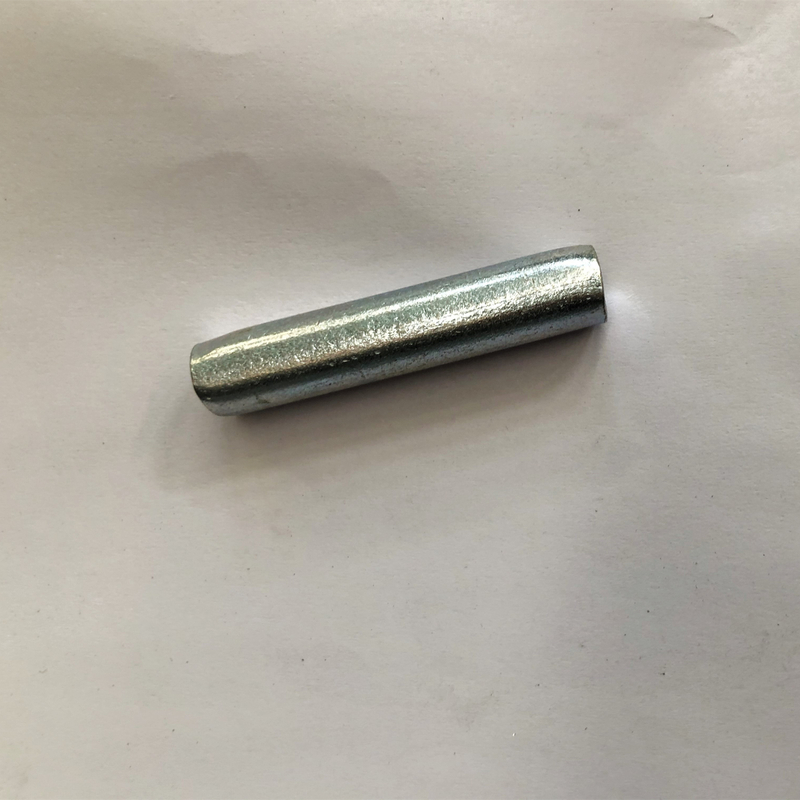

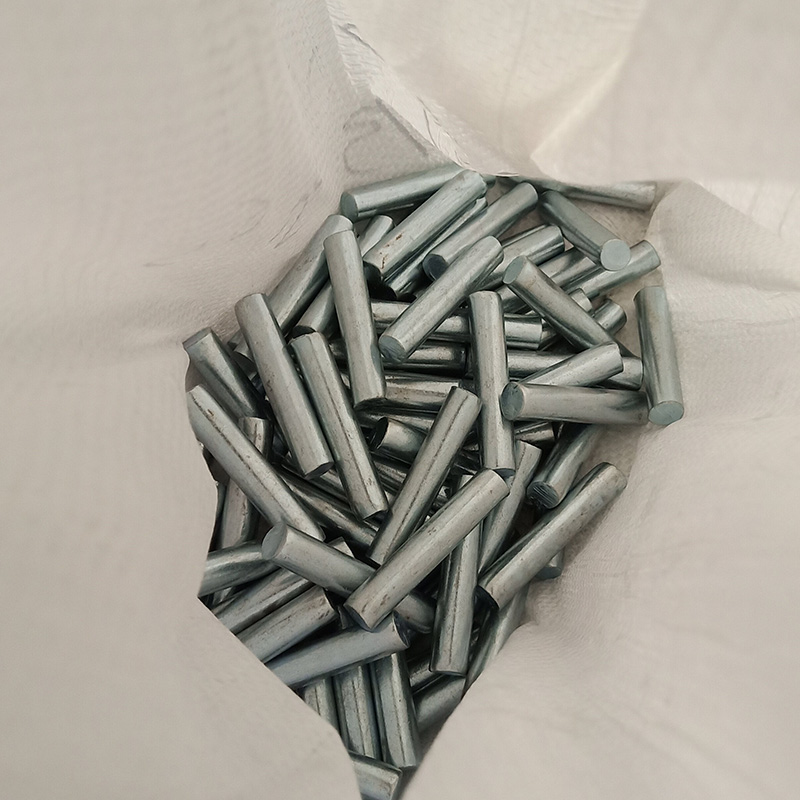

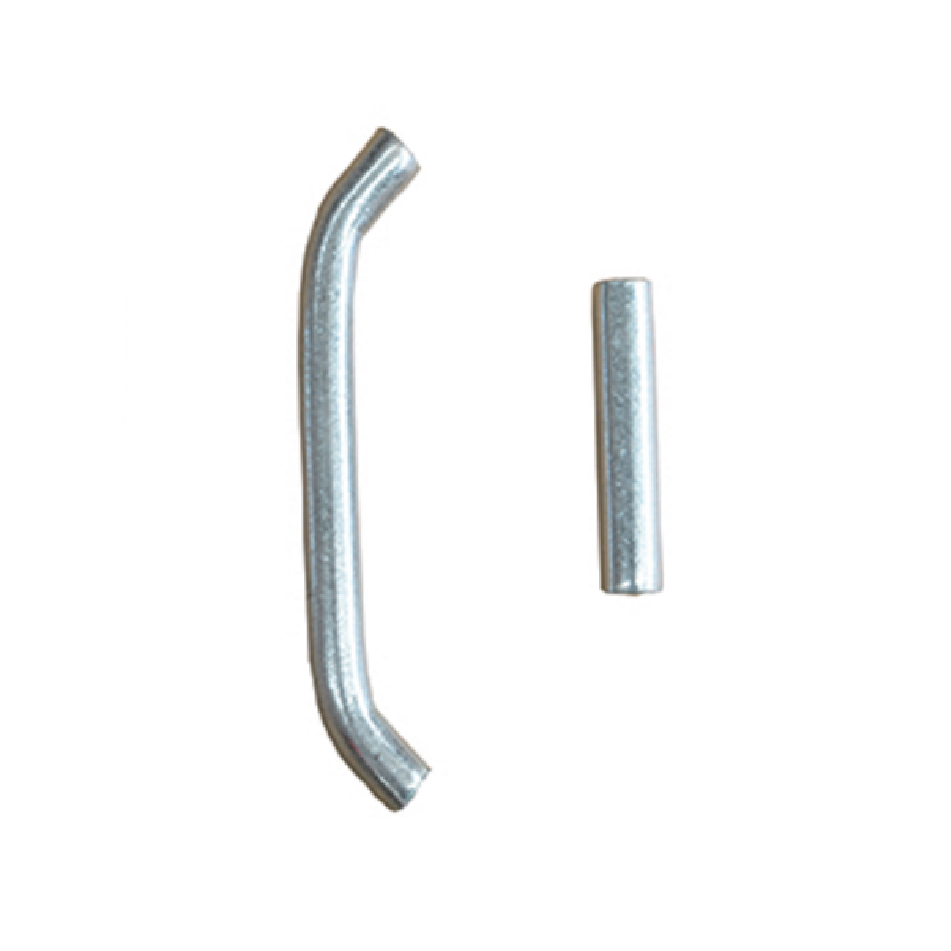

One shipping container requires four locking rods, which are used with door lock device. We can provide a separate lock rod and welded lock rod set.
The ISO container corner casting is made of casting steel with low temperature working at -40 °C as standard and the quality is completely in accordance with requirement of international standard.
It is used to standard shipping cargo container, one set contains 8 pieces (including 2 Top Left, 2 Top Right, 2 Bottom Left, 2 Bottom Right)
Huck bolts are available in many specifications, huck bolts and huck nuts are used together.
We have different spec and diameters, high physical performance. It can be riveted on one side.
The standard size is 943*1952 (length * height), the thickness of the standard door panel is 2.0, each container uses 2 pieces, the width of each wave is 208, the width of the bottom of the wave is 72, the width of the wave slope is 68, the height of the wave is 36, the arc size of each bend is R5.
he front end panel is mainly used for the front of containers. The standard thickness is 2.0, wave base width is 110, wave top width is 104, wave slope width is 18, the arc at the bend is R13.5, and the use size is 2.0*1045 (width) *2400 (height). A total of 2 pieces are used, and the heights are welded together during welding.
We supply various kinds of container twist locks like semi-automatic twist lock, fully automatic twist lock, intermediate twist lock, dovetail twist lock.
Shipping container bridge fitting are primarily used in the shipping industry to ensure safe transport of shipping containers on ship but are widely used when two shipping containers need to be securely connect together horizontally.
The length of the bridge fitting can be customized according to customer's requirements.
There are two types: Standard Type 260mm and Larger Type 380mm which are the most popular.
This container wheels are designed for shipping container and container house only. The wheel have twist lock on the top, so that it can be locked the container quickly via container bottom corner castings.
