| Specification: | |
|---|---|
| Quantity: | |
| PDF Export | |

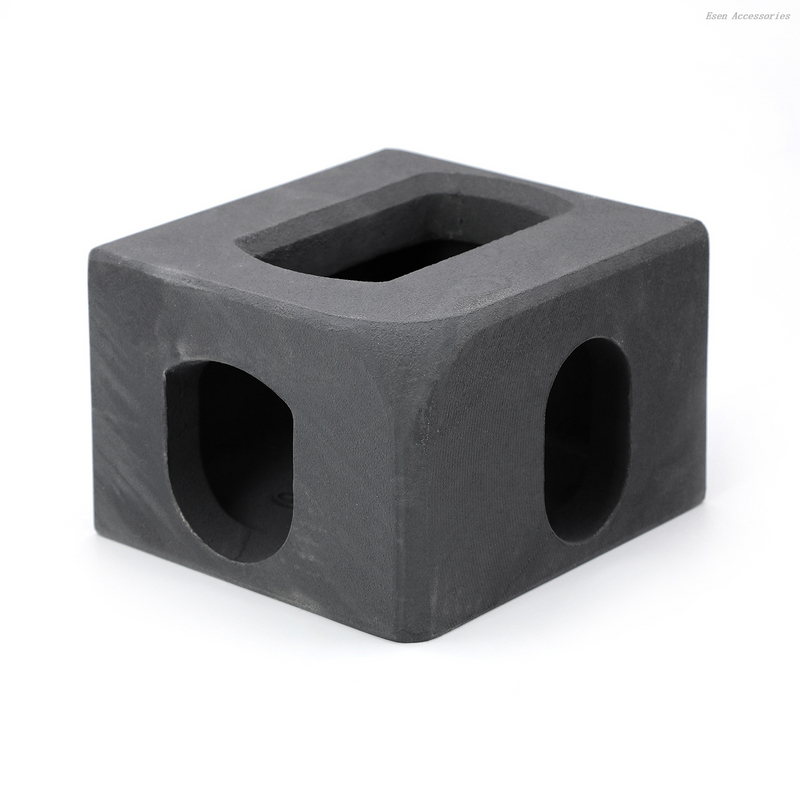

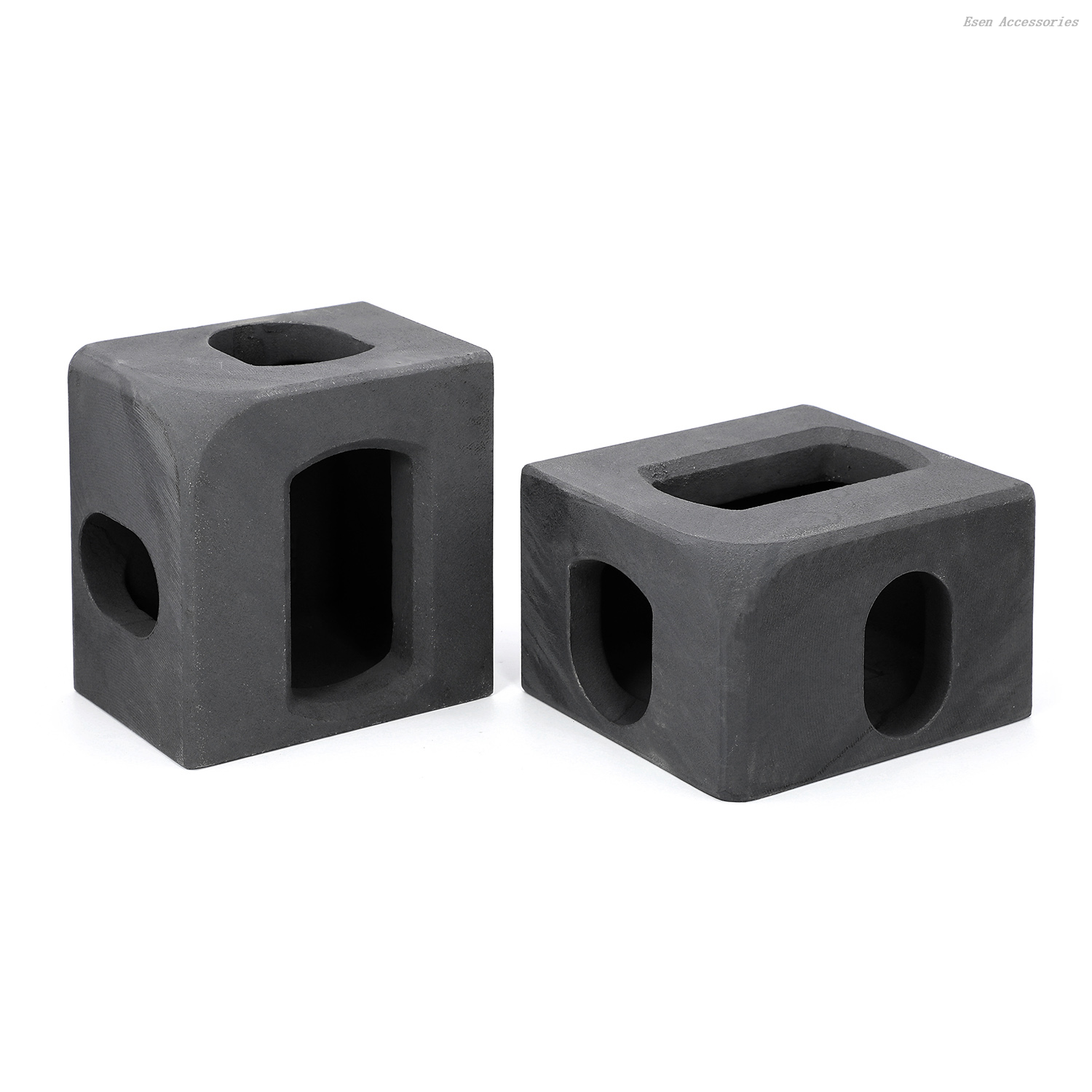

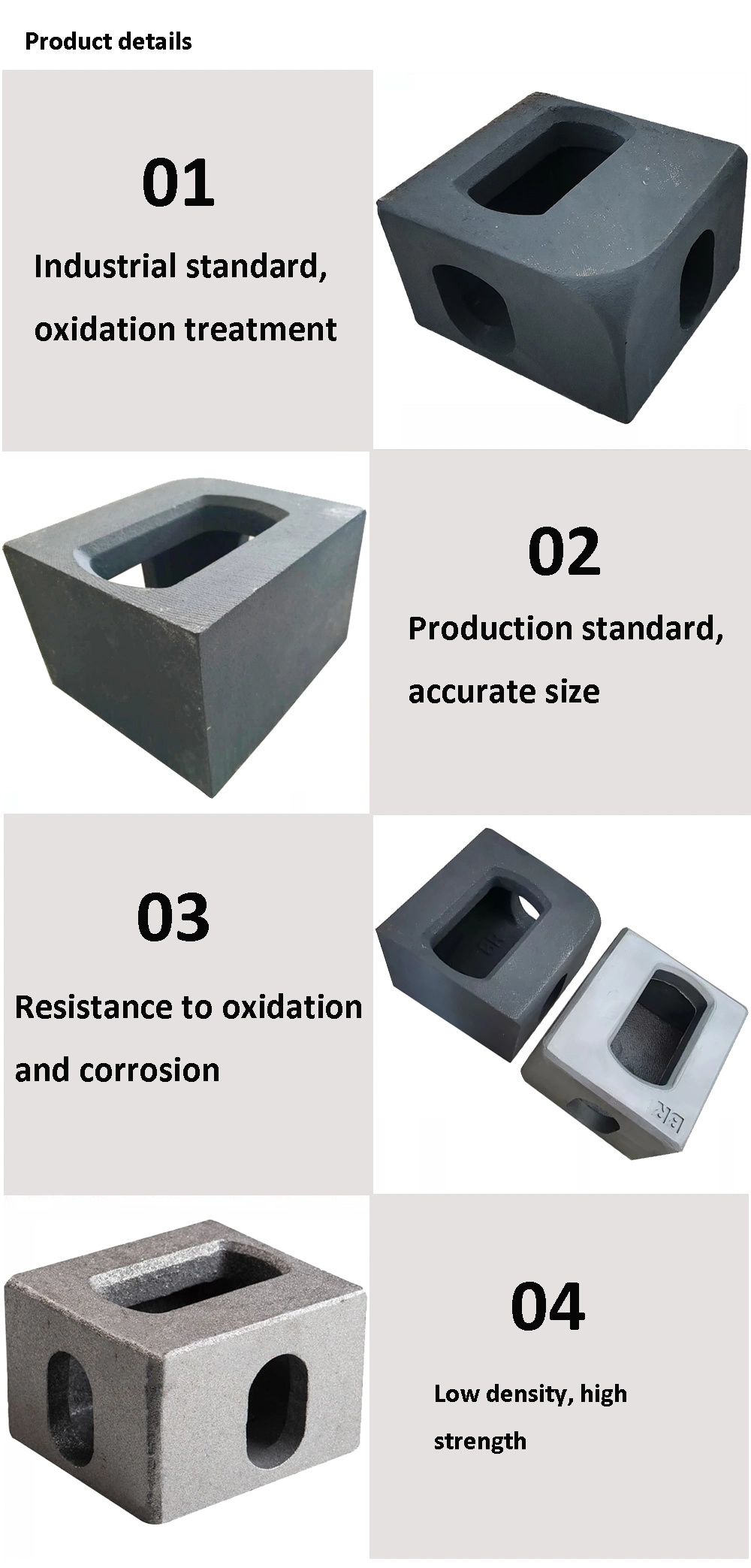

| Product Name | Container Fittings corner castings |

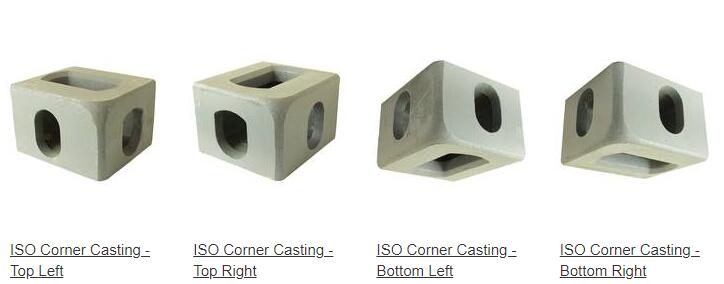

| Product Type | Corner casting for container (Top Right,Top Left, Bottom Left, Bottom Right). |
| Material | Casting steel, JIS SCW480 |
| Brand Name | ESEN |

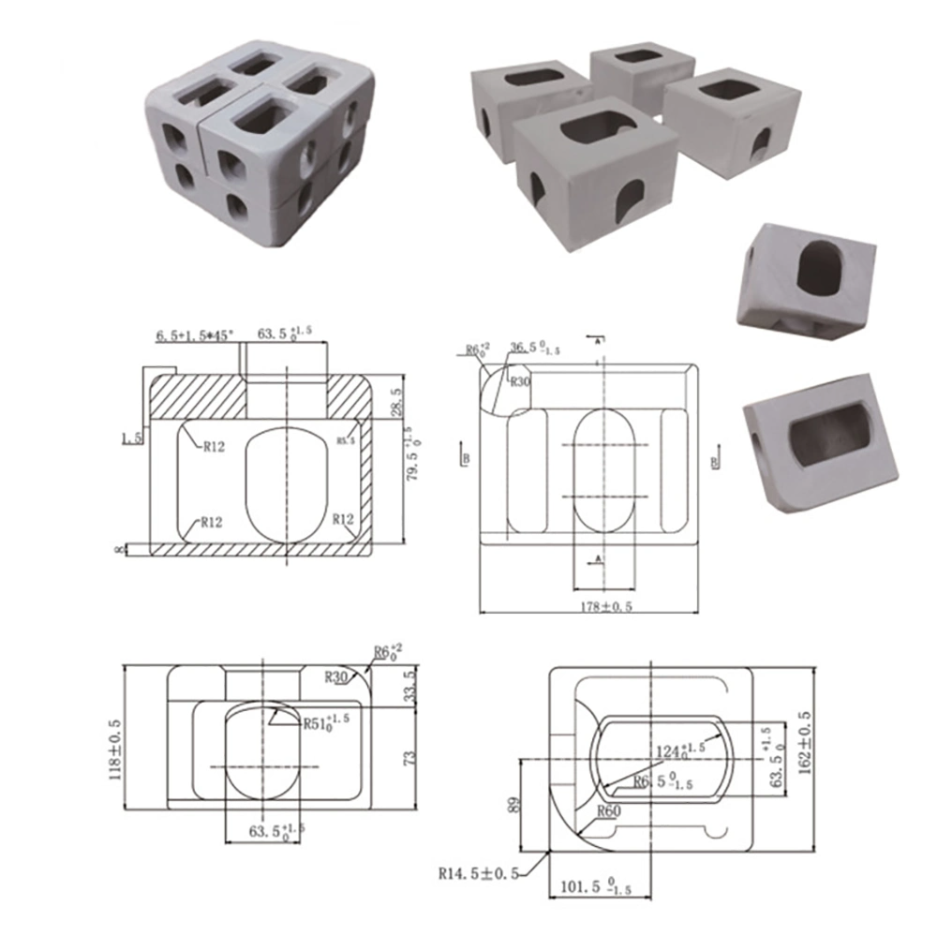

| Size | 178×162×118mm |
| Weight | +/-11.0 kg/sheet. 8pcs in one set, including 2TL, 2TR, 2BL, 2BR |
| Standard | AISI, ASTM, BS, DIN, JIS. |
| Surface treatment | Painting,Shop primer |
| Technology | Corner casting made from special steel designed for low temperature working at -40°C as standard. |

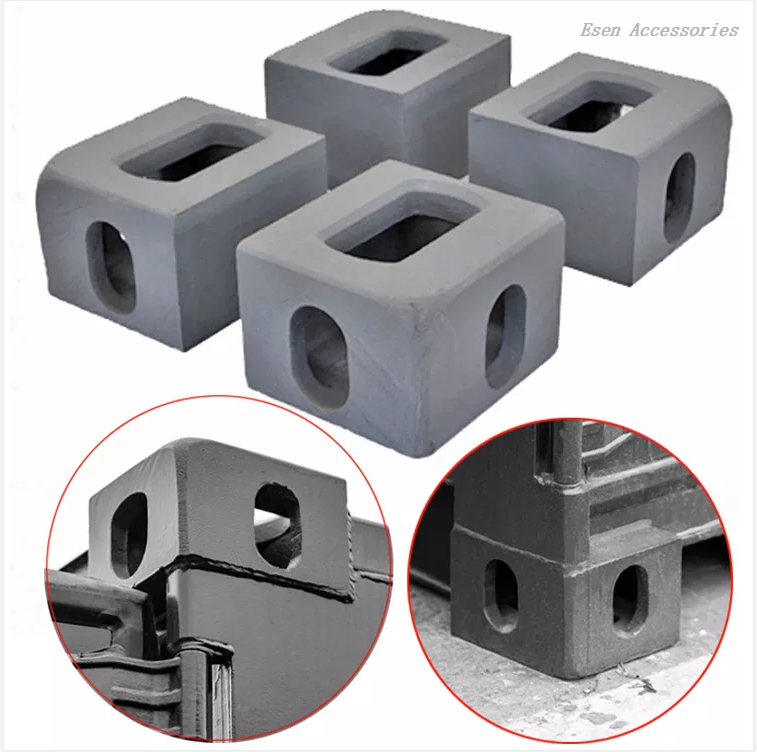

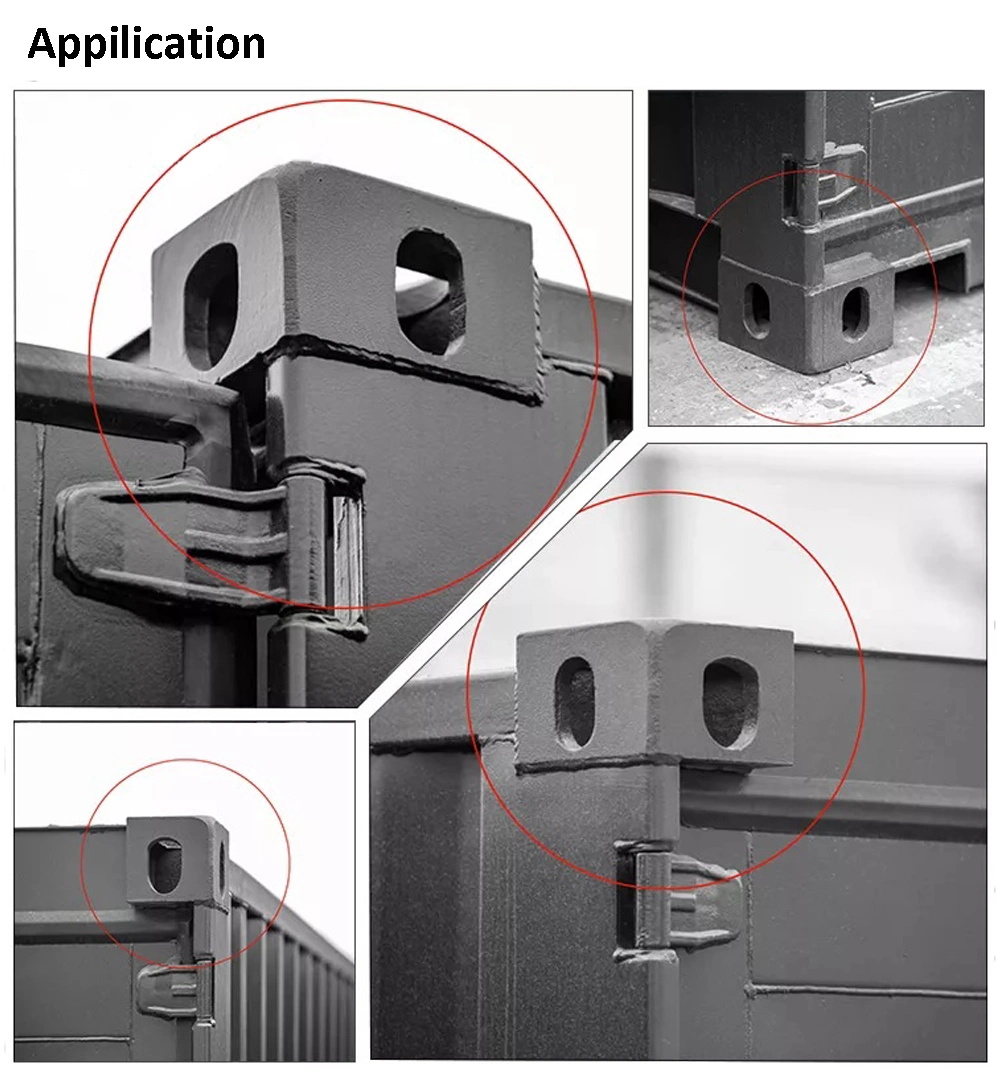

| Application | Widely used in container building or repairing |
| Minimum Order Quantity | 100 Sets |
| Packaging details | 100 pcs of container corner fittings in one pallet (12.5 sets); 20 pallets in one 20GP container |
| Port | Shanghai, China |
| Delivery Time | 15 days or more quickly |
| Deposit value | 30% |
| Supply Ability | 5000 pieces/month |
Technical Requirements:
1. Corner casting should be manufactured in accordance with the technical requirements of ISO-1161
2. Otherwise unspecified costing corner are R3.
3.The surfaces of corner casting ore permitted to have defects such as sandhales cinderholes, and gashales which should
conform to the following requirements.
a.The depth of defect should not be more than 1mm, and the single defect area should not be more than 5x5(mm) the numbers of the above defects should not be more than 3.
b.The total area of the defects should not be mare than 3% of the area where they are located.
4. Every two volts with hole should be perpendicular to each other, and the perpendicularity should be 1mm.
5. The chamfer 6.5x45°of the hole Ø124x63.5 and the exterior corner R3 are allowed to be filled smoothly
6. The casting should be stamped.
7. The casting should be heat treated.
