Classic Mini Front End Replacement

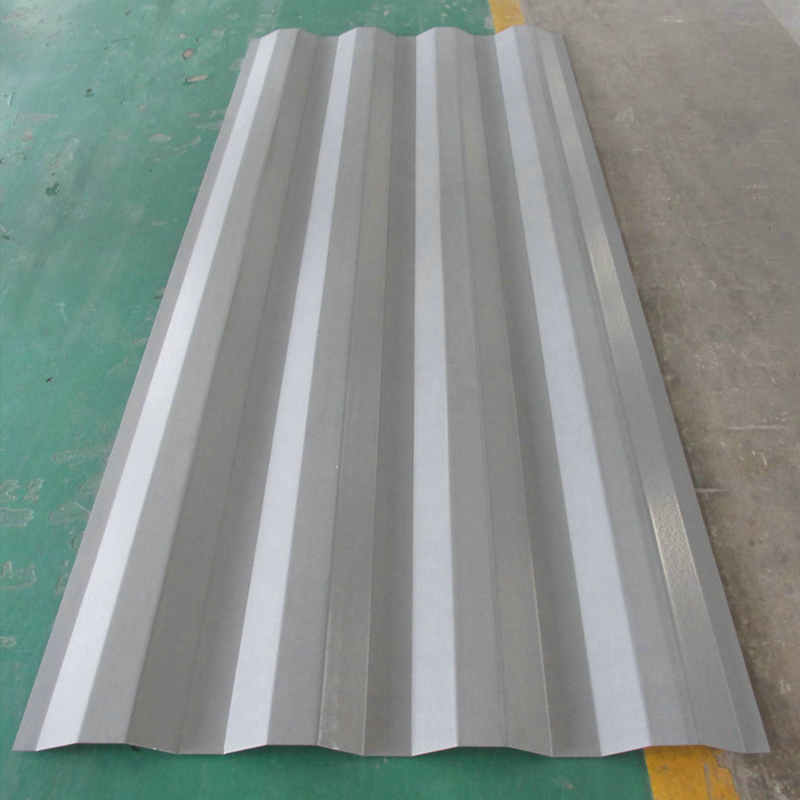

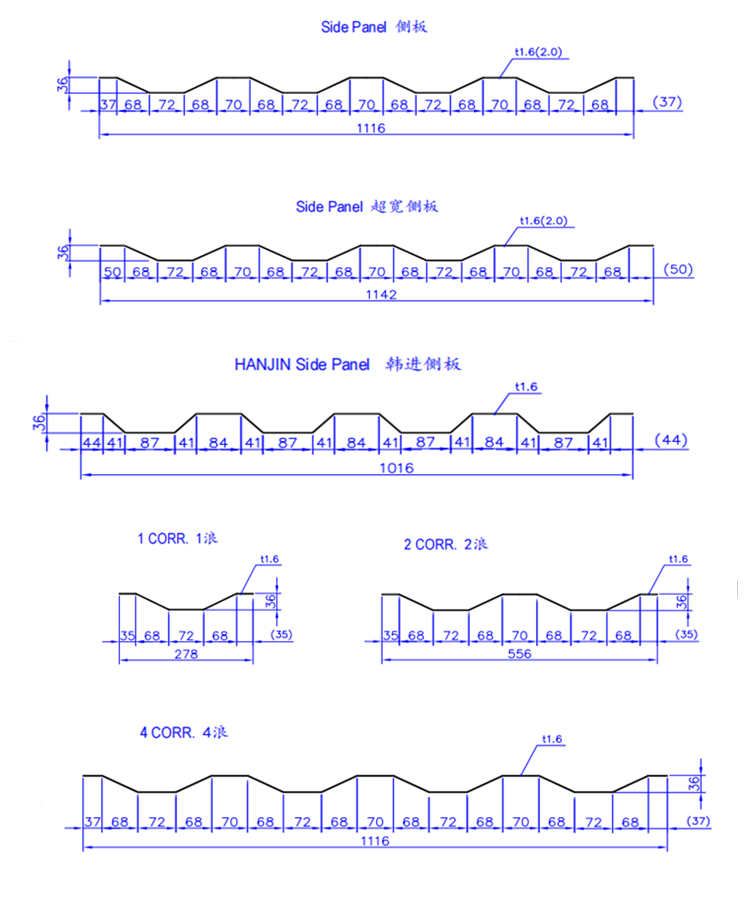

The side panel is used for the side of containers, with a standard thickness of 1.6mm, wave height of 36mm, wave width of 72mm at the top, wave width of 70mm at the bottom, slope width of 68mm, arc Angle at the bending point of R5, wave width of 208mm at each side, with 37 plates on both sides of the side panel (used for welding between side panels).
MOQ:
200
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Model

Specification

Name

SIZE(MM)

WEIGHT(KG)

ESEN-D02-01A

大波纹四浪

4 Corr Side Panel

1.6X1116X2400

35.721

ESEN-D02-01B

大波纹四浪

4 Corr Side Panel

1.6X1116X2700

40.186

ESEN-D02-01C

大波纹四浪

4 Corr Side Panel

2.0X1116X2400

44.462

ESEN-D02-01D

大波纹四浪

4 Corr Side Panel

2.0X1116X2700

50.020

ESEN-D02-05A

超宽侧板

Side Panel

2.0X1142X2400

47.097

ESEN-D02-05A-1

超宽侧板

Side Panel

2.0X1142X2380

46.704

ESEN-D02-05A-2

超宽侧板

Side Panel

1.6X1142X2380

37.363

ESEN-D02-05B

超宽侧板

Side Panel

2.0X1142X2700

52.984

ESEN-D02-05B-1

超宽侧板

Side Panel

2.0X1142X2743

53.828

ESEN-D02-05B-2

超宽侧板

Side Panel

1.6X1142X2743

43.062

ESEN-D02-05B-3

超宽侧板

Side Panel

1.6X1142X2700

42.387

ESEN-D02-04A-1

韩进侧板

HANJIN Side Panel

1.6X1016X2400

32.915

ESEN-D02-04B-1

韩进侧板

HANJIN Side Panel

1.6X1016X2700

37.029

ESEN-D02-02A

1浪侧板

1 Corr Side Patch

1.6X278X150

0.558

ESEN-D02-02B

1浪侧板

1 Corr Side Patch

1.6X278X300

1.116

ESEN-D02-02C

2浪侧板

2 Corr Side Patch

1.6X556X150

1.116

ESEN-D02-02D

2浪侧板

2 Corr Side Patch

1.6X556X300

2.233

ESEN-D02-02E

2浪侧板

2 Corr Side Patch

1.6X556X600

4.465

ESEN-D02-02F

4 浪侧板

4 Corr Side Patch

1.6X1116X300

4.465

ESEN-D02-02G

4 浪侧板

4 Corr Side Patch

1.6X1116X600

8.930

ESEN-D02-02H

4 浪侧板

4 Corr Side Patch

1.6X1116X1200

17.860




Feature description：The side panel is used for the side of containers, with a standard thickness of 1.6mm, wave height of 36mm, wave width of 72mm at the top, wave width of 70mm at the bottom, slope width of 68mm, arc Angle at the bending point of R5, wave width of 208mm at each side, with 37 plates on both sides of the side panel (used for welding between side panels).

Material：Corten Steel

Surface treatment：Stand Blasting,Spray Paint

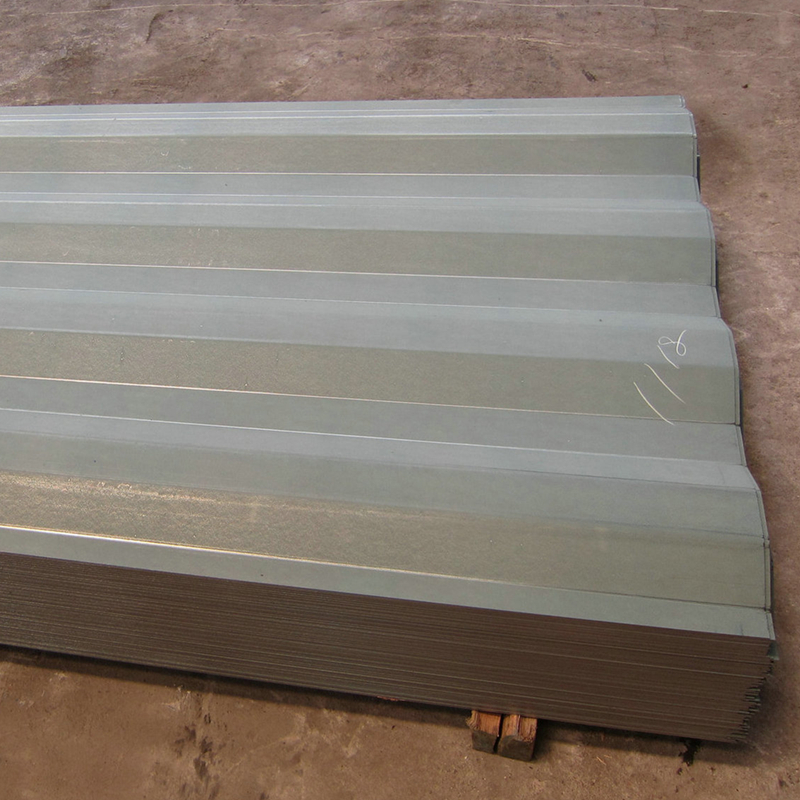

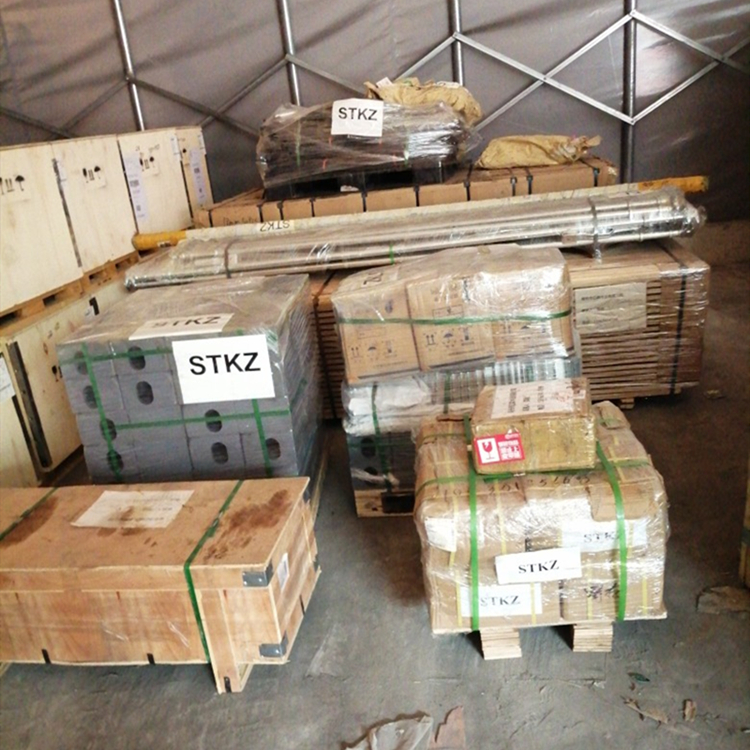

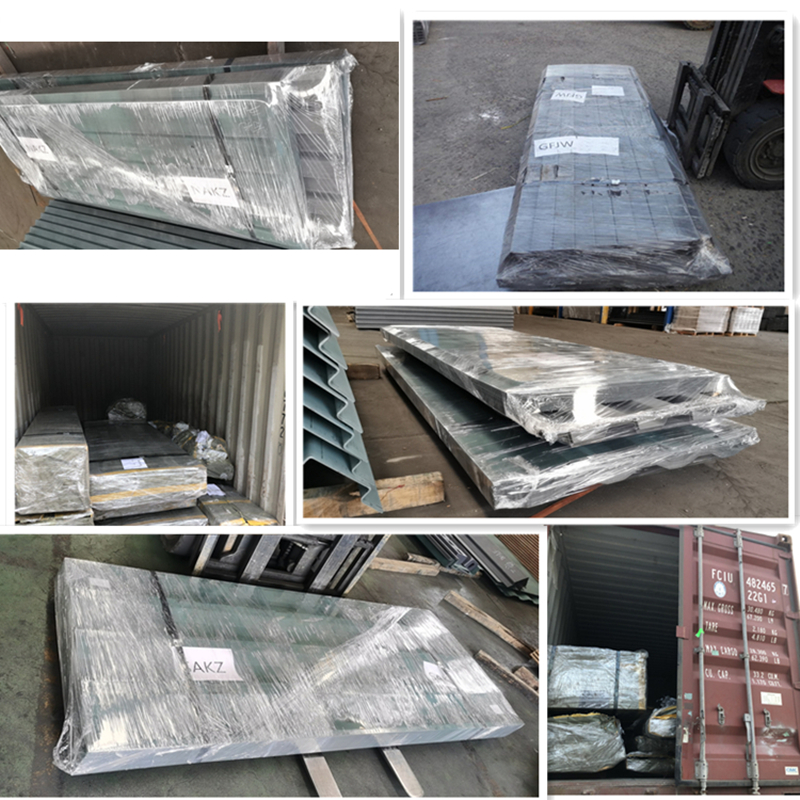

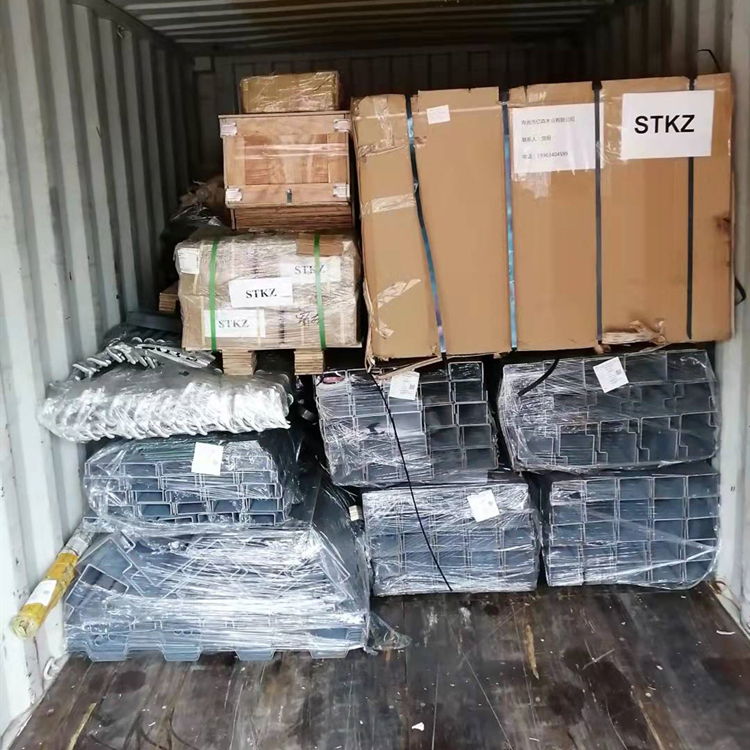

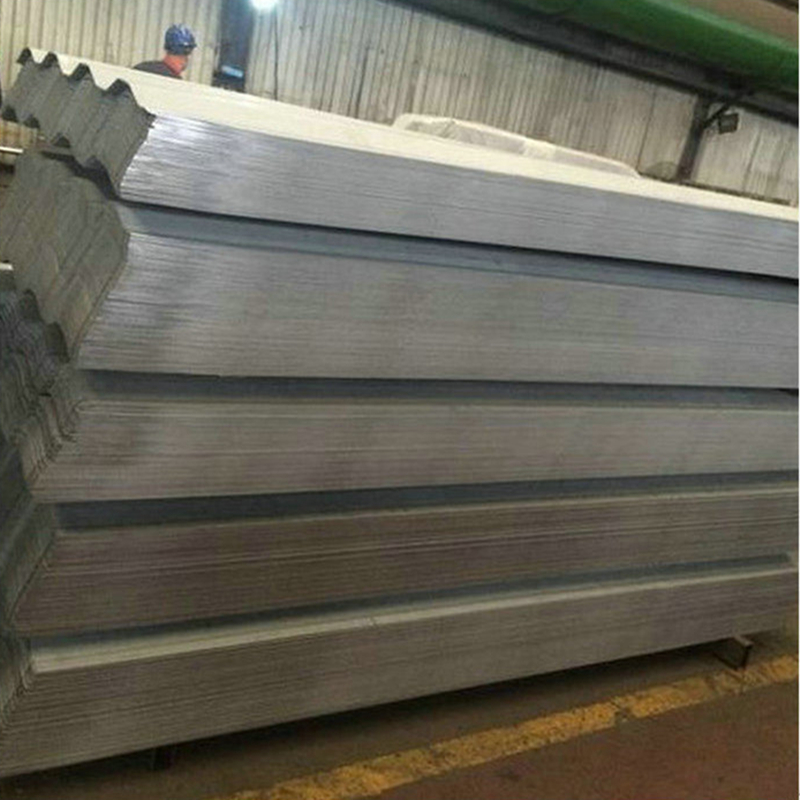

Package：The side panel can be stacked and placed with small space, and wooden frame can be used for transportation.The packaging is not easy to get wet and rust.

123


Instructions for use：The side panel is hot-dip galvanized, with strong corrosion resistance and long service life.

Use：The purpose of side panel is for repairing or manufacturing shipping container side, house container side.
