500mm Manlid Assembly with 170mm Inspection
Home » Product Category » Tank Container Accessories » 500mm Manlid Assembly with 170mm Inspection

loading

500mm Manlid Assembly with 170mm Inspection

500mm Manlid Assembly with 170mm Inspection(offshoretank)-8 Points fastening.8mm neckring profiled to suit tank
radius. With 1.5″ relief vaive Bsp connector and 170mm Inspection cover
Option-Neckring depths, 170mm or 300mm inspection are available.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

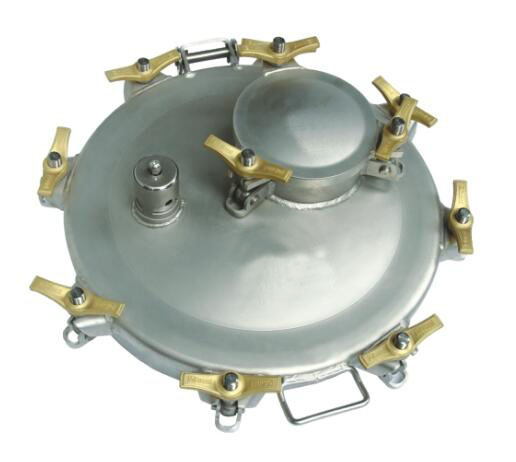

20221130080040













Part No:R4583501-00
Nominal Diameter:500mm
Design Pressure:4Bar(58PSI)
Test Pressure:6Bar(87PSI)
Points:8
Material:304/316L

Design Temperature:-20℃~150℃

Temperature range depends on the seal

500mm Manlid Assembly with 170mm Inspection(offshoretank)-8 Points fastening.8mm neckring profiled to suit tank
radius. With 1.5″ relief vaive Bsp connector and 170mm Inspection cover
Option-Neckring depths, 170mm or 300mm inspection are available.

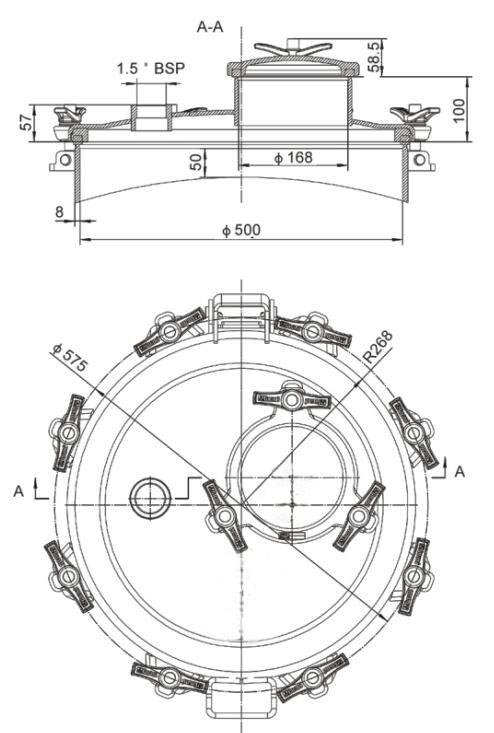

20221130081211

Part Drawing

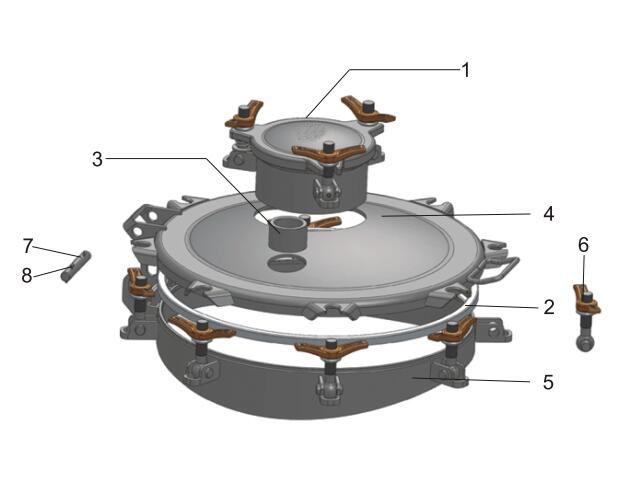

20221130081322

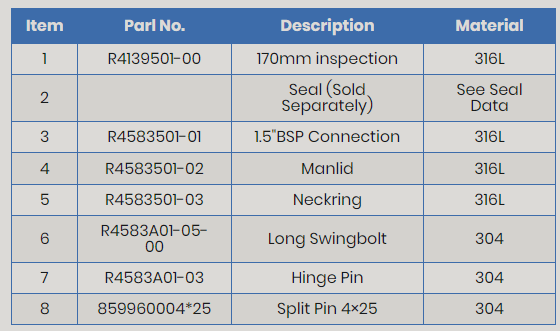

111
