R4583A01-00
ESEN

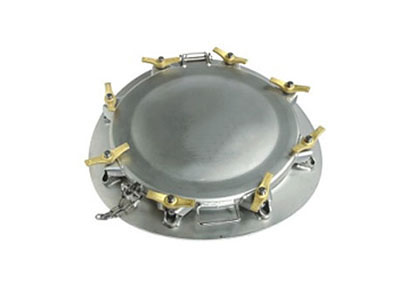

500mm Low Profile Manlid Assembly-8 Points fastening.8mm neckring profiled to suit tank radius. Stainless steel swingbolts with stainless steel handnuts or brass handnuts. Seal sold separately
Option-double skin cover. Its thermal insulation keeps medium from influenced by outer temperature
Part No | R4583A01-00 | Nominal Diameter | 500mm |
Design Pressure | 4Bar(58PSI) | Test Pressure | 6Bar(87PSI) |
Points | 8 | Material | 316L |
Design Temperature | -40℃~200℃ |
Temperature range depends on the seal, Neck ring profiled to suit tank radius.
Product

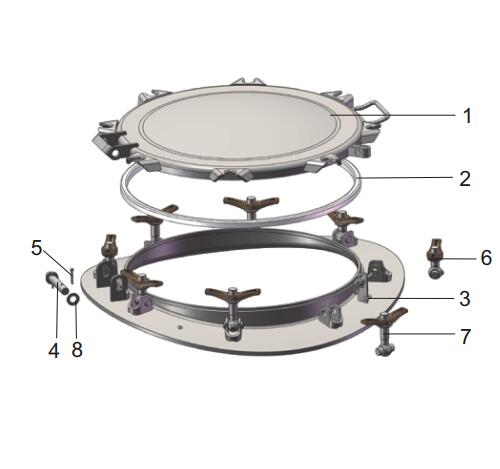

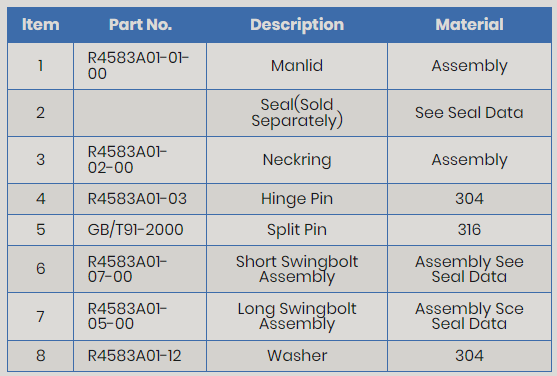

Fitting Details

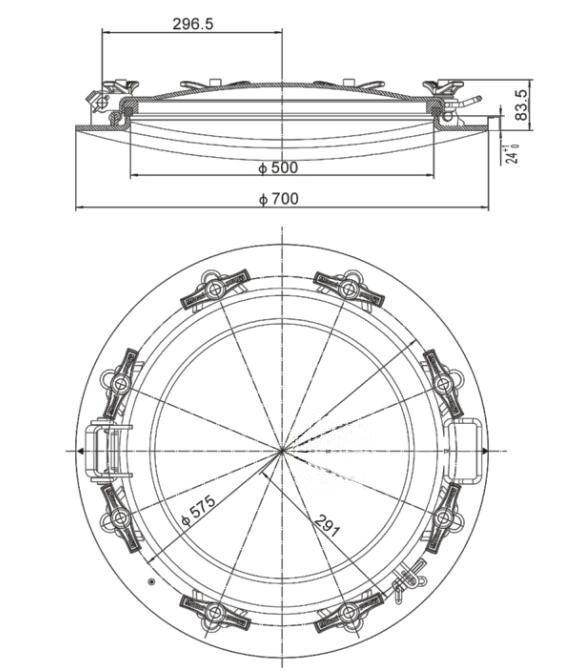

Part Drawing

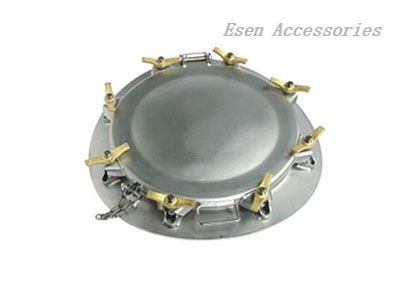

500mm Low Profile Manlid Assembly-8 Points fastening.8mm neckring profiled to suit tank radius. Stainless steel swingbolts with stainless steel handnuts or brass handnuts. Seal sold separately

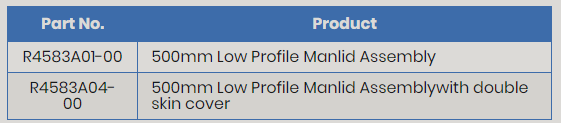

Option-double skin cover. Its thermal insulation keeps medium from influenced by outer temperature
Part No | R4583A01-00 | Nominal Diameter | 500mm |
Design Pressure | 4Bar(58PSI) | Test Pressure | 6Bar(87PSI) |
Points | 8 | Material | 316L |
Design Temperature | -40℃~200℃ |
Temperature range depends on the seal, Neck ring profiled to suit tank radius.
Product
Fitting Details
Part Drawing
