500mm Domed-FBM Manlid Assembly
Home » Product Category » Tank Container Accessories » 500mm Domed-FBM Manlid Assembly

loading

500mm Domed-FBM Manlid Assembly

24 point fastening cover-24-ф 12 equi-spaced on ф535 PCD. Double grooves sealing structure system.Contact parts manufactured in 316L stainless steel.Supplied with all studs. nuts and washers and PTFE seal.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

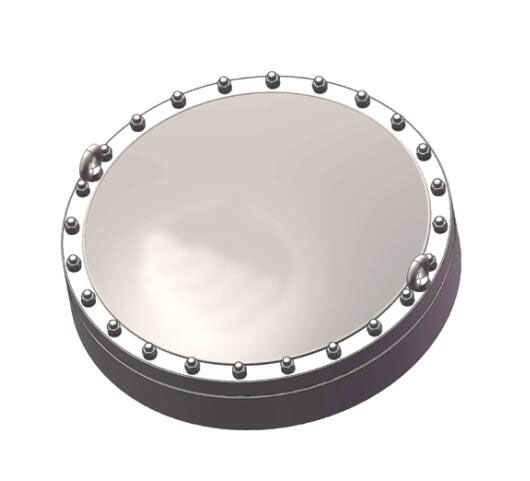

  • R45NA701-00

20221129212059

Part No.: R45NA701-00
Norminal Diameter: 500mm
Design Pressure: 4Bar(58PSI)
TestPressure: 6Bar(87PSI)
Points: 24
Material: 304/316L
Design Temperature: -40°C~170C

24 point fastening cover-24-ф 12 equi-spaced on ф535 PCD. Double grooves sealing structure system.Contact parts manufactured in 316L stainless steel.Supplied with all studs. nuts and washers and PTFE seal.
Option:Supplied the handles or 304 stainless steel.

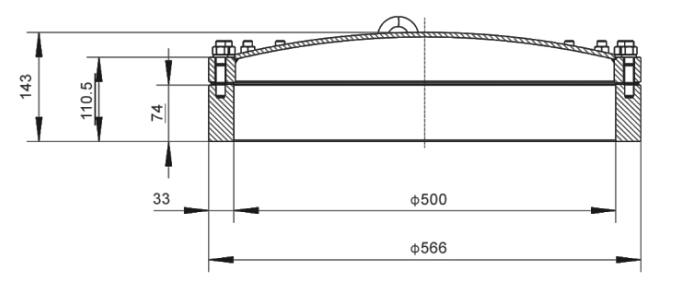

Fitting Details

20221129212317

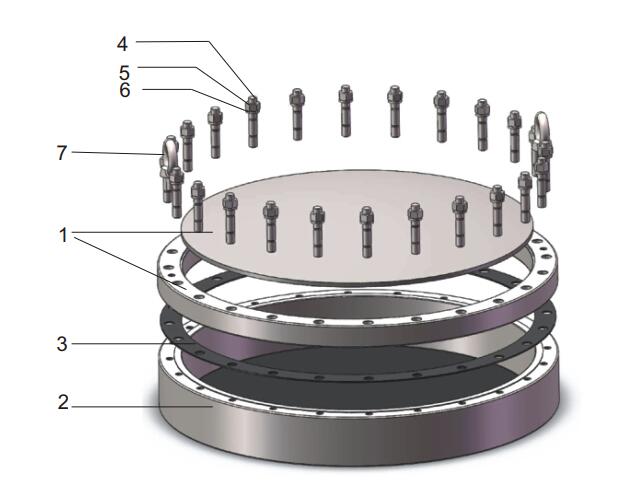

Part Drawing

20221129212405

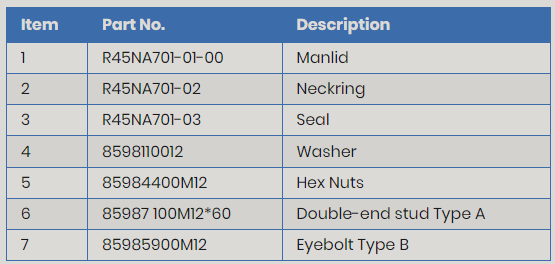

111

Note: Product material can be customized according to customer needs.
