300 Mm Low Profile Inspection Manhole Manlid Cover
Home » Product Category » Tank Container Accessories » 300 Mm Low Profile Inspection Manhole Manlid Cover

loading

300 Mm Low Profile Inspection Manhole Manlid Cover

300mm Low Profile Inspection Manlid 4 points, 8mm thickness, Stainless steel swing bolts with stainless steel handnuts or brass handnuts.

Manlid seal sold separately.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

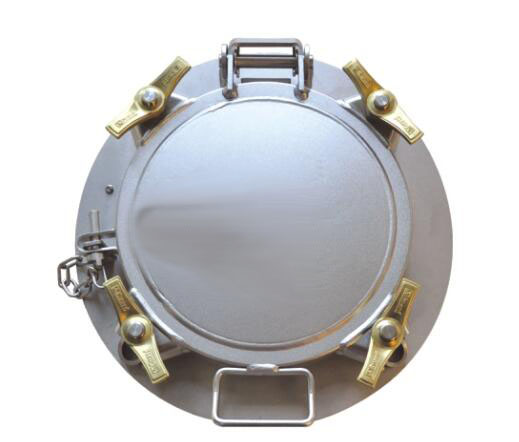

20221127103751

300mm Low Profile Inspection Manlid-4 points8mm thickness Stainless steel swingbolts with stainless steel handnuts or brass handnuts.Manlid seal sold separately.
Option-Different neckring depths. double skin manlid and
swingbolt combinations are available.


Part No.:R4343A01-00
Nominal Diameter:300mm
Design Pressure:4Bar(58PSI)

Test Pressure:6Bar(87PSI)
Design Temperature :-40℃~200℃
Points:4
Material: 304/316L


Temperature range depends on the seal, Neck ring profiled to suit tank radius.

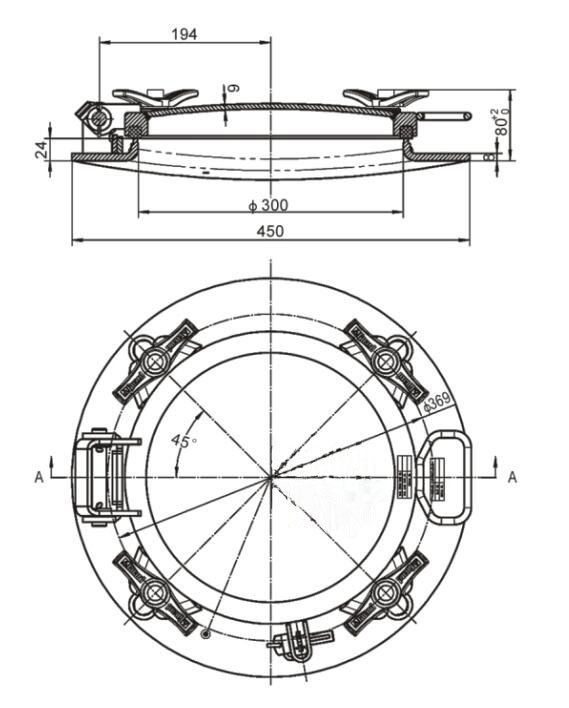

20221127104528

Fitting Details

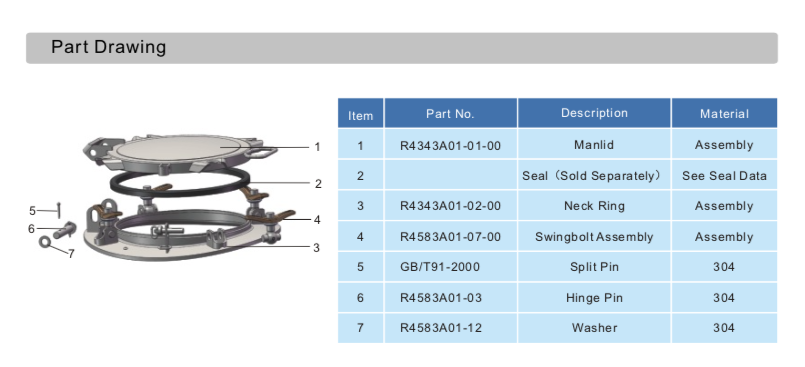

r4343a01-00-part-drawing
