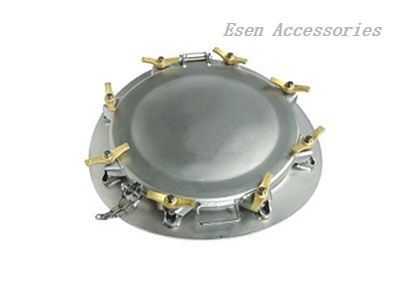

Option-double skin cover. Its thermal insulation keeps medium from influenced by outer temperature
| Part No | R4583A01-00 | Nominal Diameter | 500mm |
| Design Pressure | 4Bar(58PSI) | Test Pressure | 6Bar(87PSI) |
| Points | 8 | Material | 316L |
| Design Temperature | -40℃~200℃ |
Temperature range depends on the seal, Neck ring profiled to suit tank radius.
Product
Fitting Details
Part Drawing
